List

Use List to list the coordinate values of loaded points, as well as display triangle information for loaded triangulations.

This option can also be accessed by selecting the Grid List button from the Grid Calc Advanced toolbar.

---

Instructions

On the Grid Calc menu, point to Data, and then click List to display the List panel.

Data

Select this check box to display the coordinates all of the loaded points.

Triangles

Select this check box to display triangle information. The information includes the vertex identifiers and adjacent triangle information.

If neither check box is ticked, then the coordinates all of the loaded points will be listed by default.

Click OK.

The information displays in the Report Window.

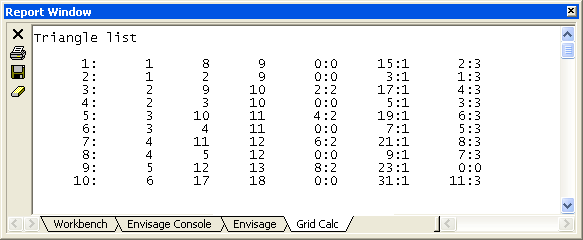

In the diagram below, triangle 1 consists of vertices 1, 8 and 9. The first edge of triangle 1 is not connected to any other triangle (0:0), the second edge is connected to triangle 15 edge 1 (15:1) and the third edge is connected to triangle 2 edge 3 (2:3).

Figure 1: Report Window Output
