Cell

Use Cell to display the current grid cell, and its surrounding cells. A grid must be loaded to use this option.

---

Instructions

On the Grid Calc menu, point to Grid Query, and then click Cell to display the Cell panel.

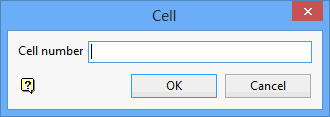

Cell

Enter the cell number in the box provided. The cell number can be obtained using the Grid option, and specifying the column and row numbers, or by using the Register option, and specifying the northing and easting values.

Click OK.

The current cell and the surrounding cell values are displayed in the Report Window.

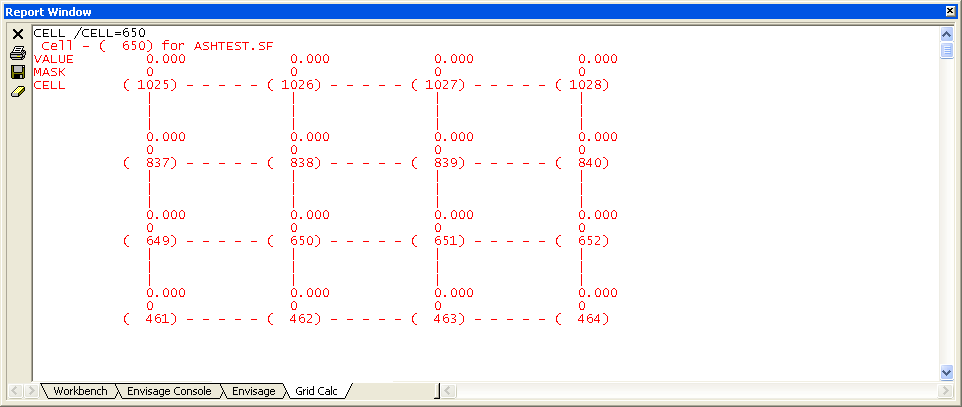

Figure 1: Report Window Output
