Display Colour Scheme

Use Display Colour Scheme to view all the colours used in a specific triangulation.

Note:   This panel behaves as a legend display windows, and is controlled by the Allow legend window docking check box on the Tools > Preferences > Vulcan > dialogs and Popups panel.

When you select this option or right-click on a triangulation and select Display Colour Scheme, the scheme displays and can be docked around Vulcan.

If you cleared the Allow legend window docking check box in Tools > Preferences > Vulcan > dialogs and Popups, the Display Colour Scheme will still dock around Vulcan.

---

Instructions

On the Model menu, point to Triangle Utility, and then click Display Colour Scheme.

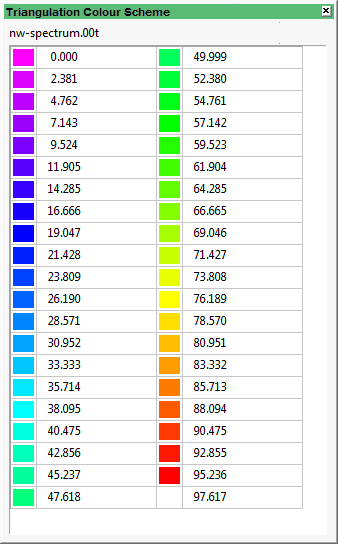

The Triangulation Colour Scheme panel displays listing all of the colours that are used in the triangulation.
