GEODAT

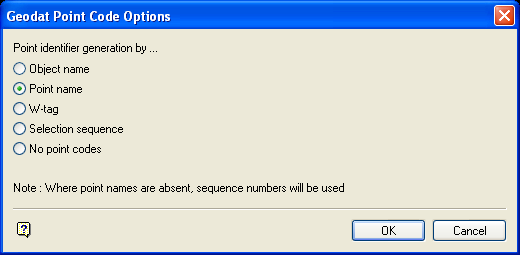

The Geodat Point Code Options panel is displayed.

Geodat Point Code Options panel

The point identifier information will be stored in the <name>.geodat_out file as follows:

5=<data type>

where <data type> = object name, point name, W-tag, sequence number or blank (that is, no 5= entry at all). Refer to Appendix A for an example.

Select OK.

The Upload Creation File Information panel is then displayed. This panel informs you of the instrument; the port and directory; the name of the resulting upload file and the number of points that have been created.
