List Station Library

List survey stations library

The List Station Library option to list all of the survey stations in a nominated survey station library.

Instructions

• Select Survey menu
• Select Surveying submenu
• Select List Station Library option

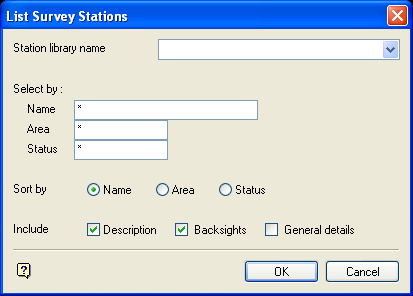

The following panel displays.

List Survey Stations panel

Station library name

Enter, or select from the drop-down list, the name of the station library that contains the stations to be listed.

Select by

The stations to be listed can be selected by name, area and status. Wildcards are allowed (* multi-character wildcard, % single character wildcard).

Sort by

The list can be sorted by name, area or status.

Include

Check the appropriate check box to include these fields in the listing.

Select OK.

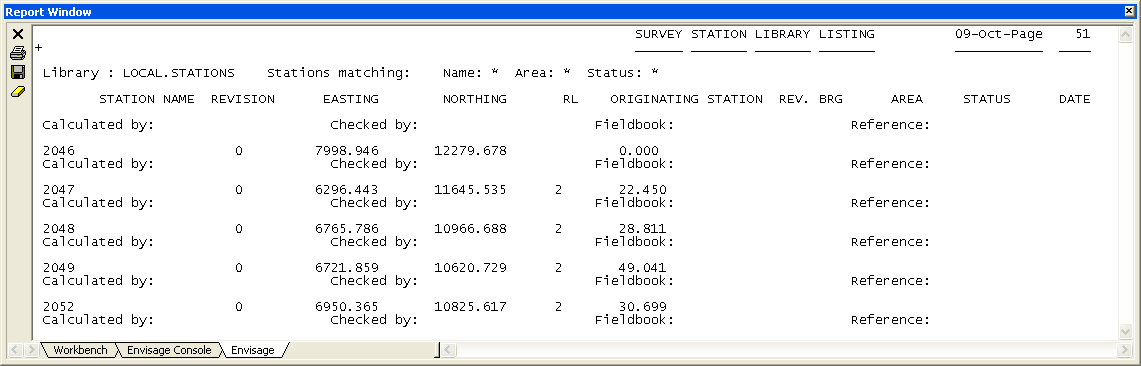

A list of all the survey stations in the nominated survey station library is then displayed in the Report Window.

Note:  An asterisk (*) is shown if the RL is greater than '9999.999'.
