Edit

Source file: inventory-edit.htm

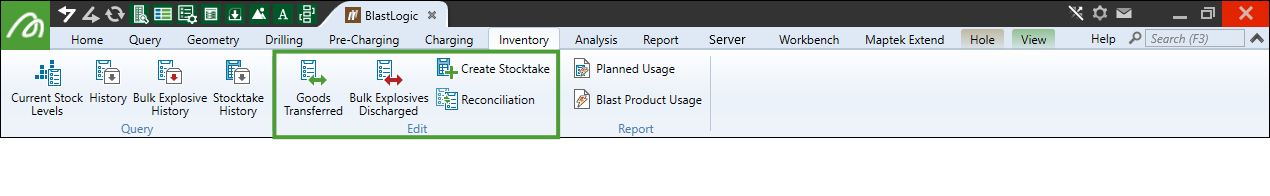

The Edit group of the Inventory ribbon contains tools to record new information about the site's blast product inventory, including its current stock levels and any changes made to them.

All blast products are stocked in the inventory except for bulk explosives, whose ingredients are typically stocked instead, and are later mixed for discharging only during the charging process.

Use the tools from the Inventory > Edit group as follows:

• If the information that you need to record concerns blast products that are stocked, use the Goods Transferred, Create Stocktake, and Reconciliation tools.

• If the information that you need to record concerns the discharging of bulk explosives, use the Bulk Explosives Discharged tool.

Goods Transferred

The Goods Transferred tool allows you to record when products are sent or received.

To record the goods transferred, follow these steps:

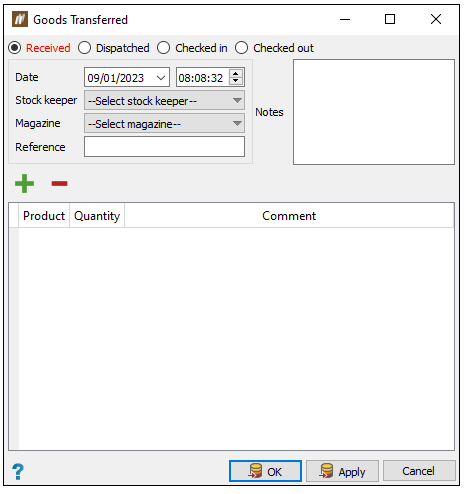

1. On the Inventory ribbon, in the Edit group, select Goods Transferred. The Goods Transferred panel will appear.



2. Using the radio buttons at the top of the panel, select the type of transfer you wish to enter.

   Expand for more information on these options.

   • The Received option refers to blast products that have been delivered to a magazine.

   • The Dispatch option refers to blast products that have been moved from a magazine to another site (other than a blast).

   • The Checked in option refers to blast products returned from a blast.

   • The Checked out option refers to blast products sent to a blast.

3. Enter the appropriate information in the following fields:

   • Date: The date and time at which the transfer occurred.

   • Stock keeper: The stock keeper responsible for overseeing the transfer.

   • Magazine: The magazine whose stock was affected by the transfer.

   You can also enter a reference number into the Reference field and add any comments into the Notes field.

4. Select to add the entry. The Select Blast Products panel will appear.

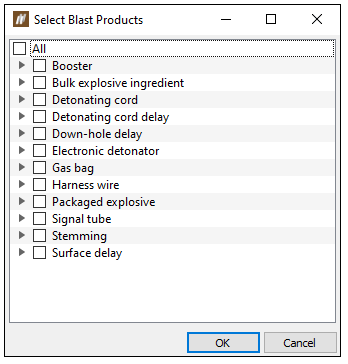

5. Select the desired products from this panel and click OK. The entry will appear in the table of the Goods Transferred panel.

6. Enter the quantity of the product being transferred.

   Note:  The quantity is expressed in the unit assigned to the product in the Blast Product Catalogue. See Blast Product Catalogue for more information.

   You can add comments in the Comment column as required.

   Tip:  Select rows that contain the unnecessary blast products and click to remove them from the table.

7. Click OK.

Bulk Explosives Discharged

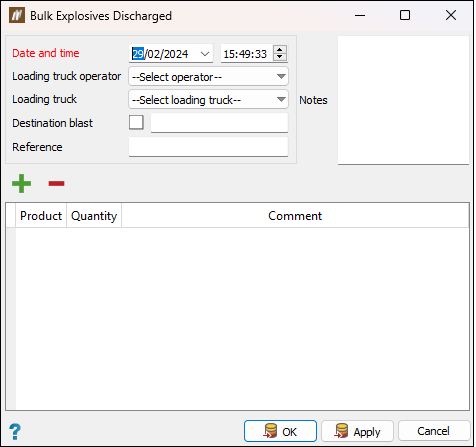

The Bulk Explosives Discharged panel allows you to make a record of bulk explosives that have been discharged for blasting. To enter the panel, go to the Inventory ribbon > Edit group and select Bulk Explosives Discharged.

To add a bulk explosives discharge record, you must fill in the following fields:

• Date and time: Set the time of the entered discharge record.

• Loading truck operator: Specify who was operating the loading truck at the time of the discharge.

• Loading truck: Specify the truck from which the bulk explosives were discharged.

• Destination blast: Specify the target blast for which the bulk explosives are being discharged by middle-mouse clicking on the blast in the project explorer and dragging it in to the Destination blast field.

• Bulk explosive products: Specify which bulk explosives where discharged by following these steps:

  1. Select to add an entry to the table.

  2. In the Select Blast Products window, click the icon to expand the bulk explosives' list.


  3. Select the required bulk explosives and click OK to confirm.


  4. Specify the quantity of the discharged products, and, optionally, add a comment.

Note:  The Reference, Notes, and Comment fields are optional.

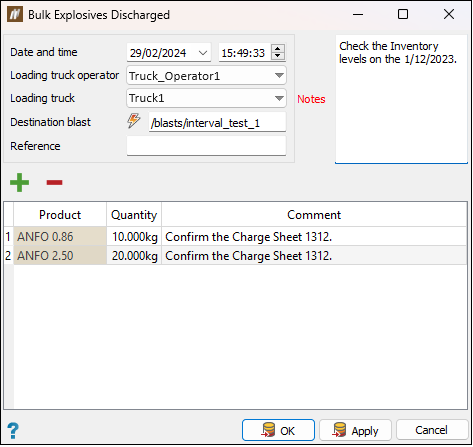

Once you have filled in all mandatory categories, click OK or Apply to save the discharge transaction.

Note:  When you save your discharge transaction by clicking OK, the Bulk Explosives Discharged panel will close. When you save your discharge transaction by clicking Apply, the panel will remain open, but it will reset for you to select different discharge data.

You can view the entry you have added in the Bulk Explosive History panel.

See Bulk Explosive History for more information.

Create Stocktake

The Create Stocktake tool allows you to manage magazine stock levels by creating stocktake entries. A stocktake will set the stock levels of the products at the specified stocktake time. You can create a stocktake entry manually or by importing a CSV file. You can also export complete stocktakes as a CSV or PDF file.

To enter a new stocktake, complete the following steps:

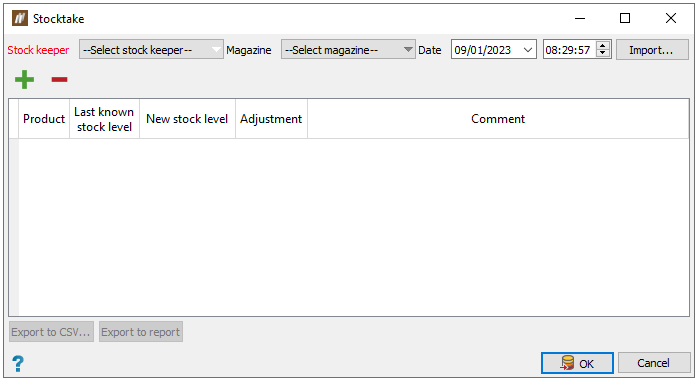

1. On the Inventory ribbon, in the Edit group, select Create Stocktake. Alternatively, select Stocktake History (Inventory ribbon > Query group) and then select New stocktake... from the panel that appears.



2. Select the appropriate information in the Stock keeper, Magazine and Date drop-downs.

3. Select to add the entry. The Select Blast Products panel will appear.



   Note:  Alternatively, import a new stocktake entry by clicking Import... and selecting the desired CSV file from the file explorer.

4. Select the desired products from this panel and click OK. The entry will appear in the table of the Stocktake panel.

5. Enter the desired information into the New stock level column of the table. You cannot leave any of the cells in this column blank.

6. Optionally, remove a row from the table by clicking .

7. Optionally, export the entry with the following options:

   • Select Export to CSV... to export the entry as a CSV file.

   • Select Export to report to export the entry as a PDF report.

8. Click OK.

Reconciliation

The Reconciliation tool enables you to record the inventory of products used for a selected blast. You can automatically calculate the total product usage or the product usage for a period of time. You can also enter and edit the stock data manually.

To record the inventory of stock for a selected blast, follow these steps:

1. Select a blast in the project explorer or view window.

2. On the Inventory ribbon, in the Edit group, select Reconciliation.

   The Reconcile Product Usage panel will appear.

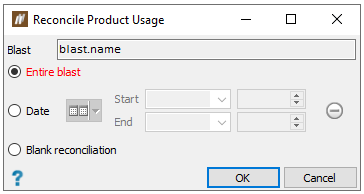

3. Select a reconciliation range using the radio buttons of one of the following options:

   • Entire Blast: Reconcile product usage over the lifetime of the blast. This includes all explosive products recorded in the charge validation panel (from tablet or manual entry) and accessories in the actual tie-up.

   • Date: Reconcile product usage for the blast over a set time period.

   • Blank reconciliation: Create a blank reconciliation for manual data entry of product usage.

4. Click OK.

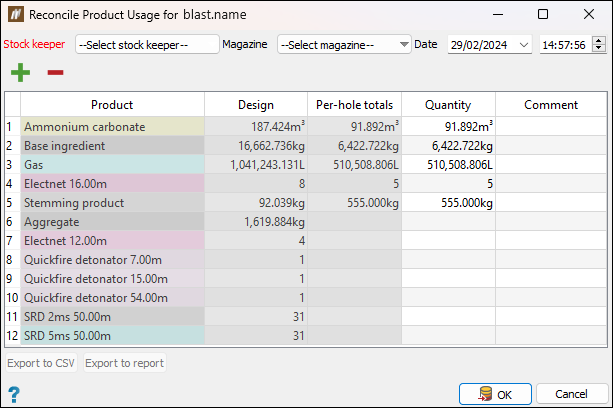

   A panel will appear displaying the recorded usages corresponding to your reconciliation range selection.



   Note:  If there are no reconciliation values, this table will be empty.

5. Select the appropriate information in the Stock keeper, Magazine, and Date drop-downs.

6. Click to add the entry. The Select Blast Products panel will appear.



7. Select the desired products from this panel and click OK. The entry will appear in the panel table.

8. Enter the desired information into the New stock level column of the table. You cannot leave any of the cells in this column blank.

9. Optionally, remove a row from the table by clicking .

10. Click OK.
