Properties

Source file: origin-reserve-setups-viewer-properties.htm

The Properties tab, which is positioned next to the View Manager tab when the Viewer tab is active, allows you to check the attributes of the solid you select in the viewer workspace.

• For more information on the View Manager (that allows you to configure dynamic colours and filters), see View Manager.

• For more information on the tools available in the viewer workspace, see Using the Solids Model Viewer.

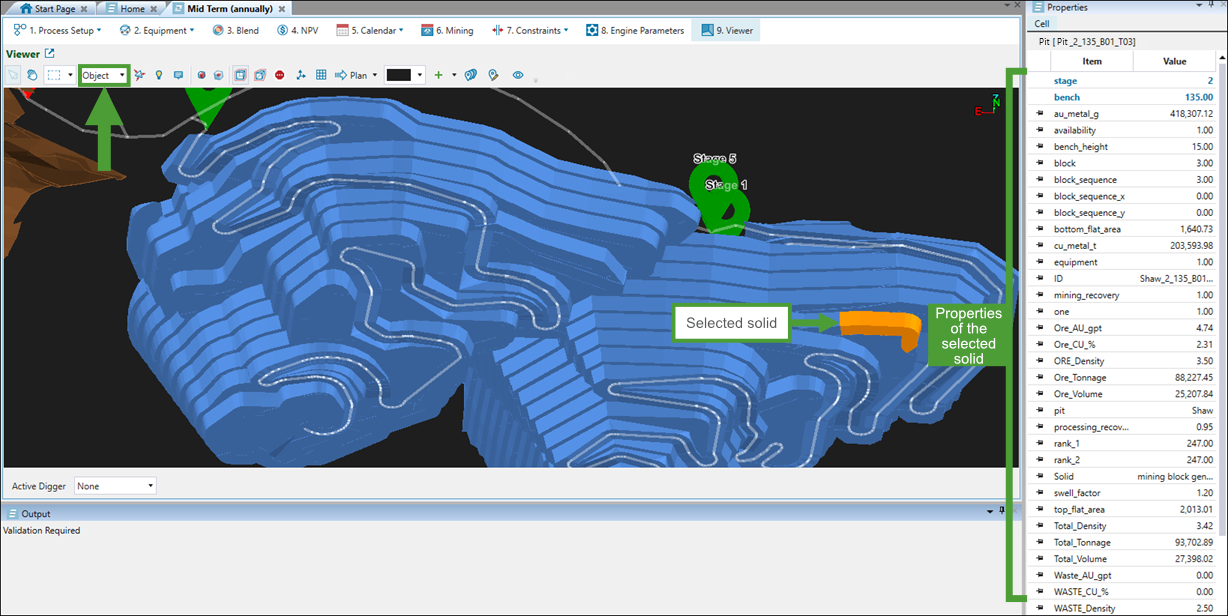

Once you select a solid in the viewer, the Properties tab will display its attributes. The key attributes for solid models (stage and bench) will be pinned on top of the Properties tab.

Tip:  Click the button to pin the selected attribute on the top of the Properties tab. To unpin a pinned attribute, click the button. Save the pinned attributes in the Properties tab by clicking Save in the Evolution Home ribbon or by pressing Ctrl+S.

Double-click the selected attribute to edit it. Click Save in the Evolution Home ribbon or press Ctrl+S to save the changes you made to a model's properties.

Note:  If you override the stage or area attribute for pit, stockpile, or waste dump, Evolution will pin the replacement attribute in the Properties tab (instead of the model's default stage or area attribute). See Configuration for more information.
