View Manager

Source file: origin-reserve-setups-viewer-view-manager.htm

Use the View Manager in conjunction with the viewer to display objects such as models and road networks. In addition to hiding or displaying objects, you can also inspect and highlight your data by using the dedicated tools.

Dynamic Colour

To add a dynamic colour to a single model or multiple models, complete the following steps:

  1. Right-click the model in the View Manager to open the context menu and select Add Dynamic Colour.

  2. Select the models to apply the dynamic colour from the panel and click Apply Selected.

  3. Open the View Manager on the right side of your screen and expand the Dynamic Colour panel.
  4. Select an attribute from the Available Columns drop-down to apply the colour.
  5. Select a predetermined colour scheme. Parts of the model will be coloured based on the attribute you have selected from the Available Columns drop-down.

The following image is an example of a pit with a dynamic colour filter applied according to the pit bench value.

For more information on applying colour bands, see Add Colour Bands.

Dynamic Filter

Applying filters in the viewer allows you to inspect values and attributes within particular solids in your model.

Follow these steps to add a dynamic filter to your model:

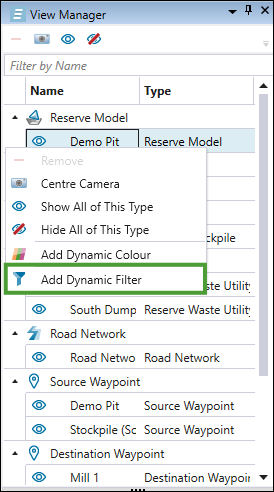

  1. Right-click the model in the View Manager to open the context menu and select Add Dynamic Filter.

  2. In the Select Viewer Objects window, select the models to which you wish to apply the dynamic filter and click Apply Selected.

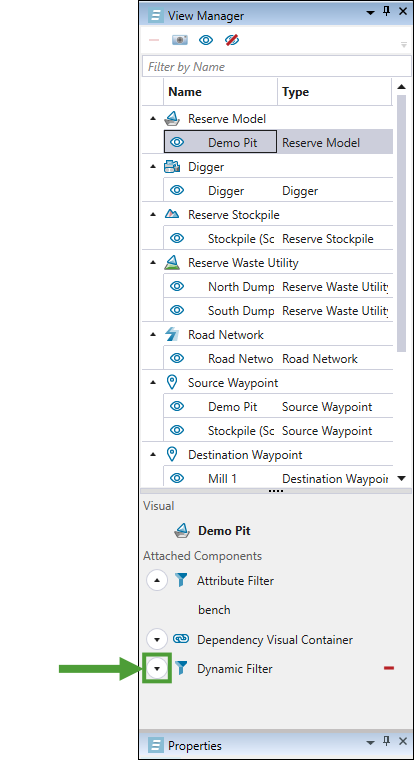

  3. Expand the Dynamic Filter panel in the View Manager on the right side of your screen.
  4. From the drop-down menu, select the type of filter that you wish to add.

    5. You can apply the following filter types:

    Numeric

    Allows you to customise the view of your model by applying a numeric value from the drop-down.
    When filtering by a numeric value, you can apply the following mathematical relations:

    • == (Equality)

    • != (Not equal to)

    • > (Greater than)

    • < (Less than)

    • > = (Greater than or equal to)

    • < = (Less than or equal to)

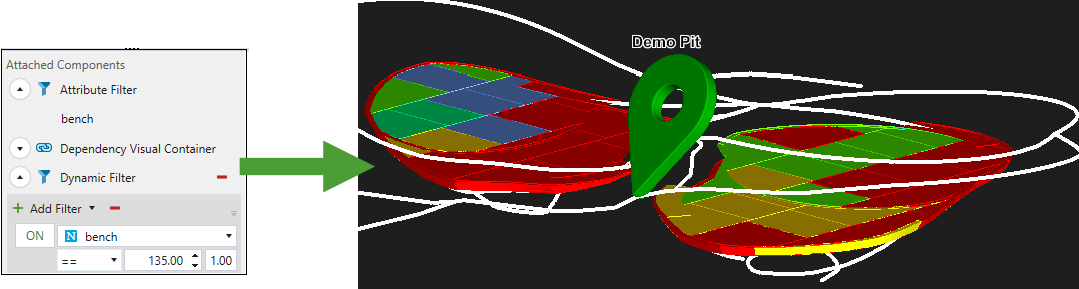

    In the example below, the model was filtered by applying bench 135.
    Text

    Allows you to customise the view of your model by applying a text value from the drop-down.
    When filtering by a text value, you can apply the following relations:

    • == (Equal to)

    • != (Not equal to)

    • Starts with

    • Ends with

    • Contains

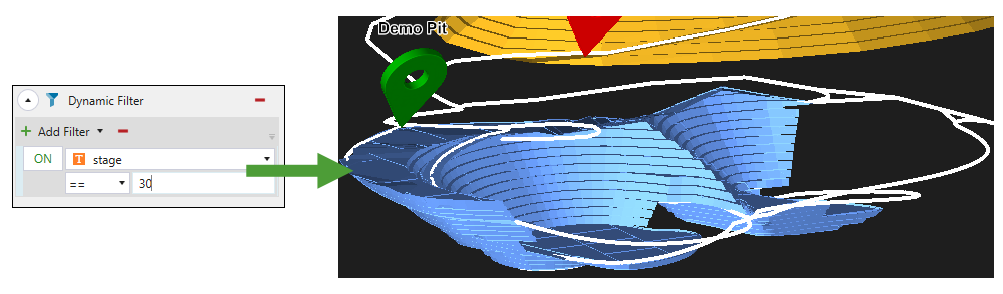

    In the example below, the model was filtered by applying stage 30.
    Solid script

    Allows you to filter the view of your model by applying a solid-related script.
    In the example below, the model was filtered to display gold with high grade greater than 5.
    Parcel script

    Allows you to filter the view of your model by creating scripts at a parcel level.

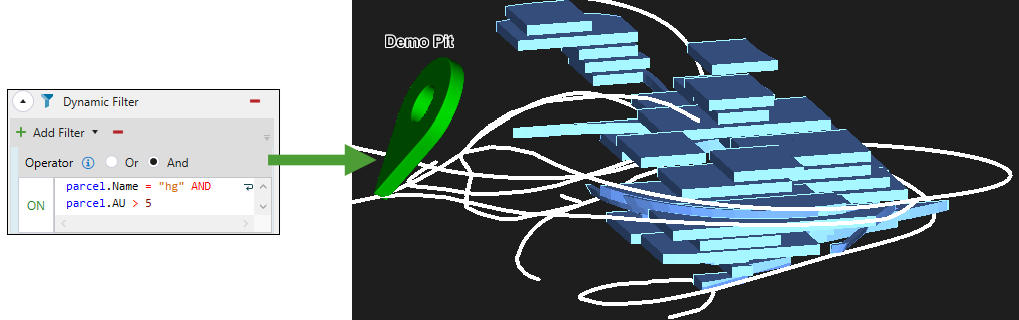

    In the example below, the model was filtered to display high grade parcels and parcels containing gold with grade higher than 5.

    For more information on creating parcels in the setup, see Parcel Reporting.

Centre Camera

To regain focus on a model in the viewer, right-click the model in the View Manager and select Centre Camera.
