Edit a Line or Polygon (edge network)

To move a point

1. Select the object in the project explorer and using the Select points mode, draw a box over a corner of the object so that one point is selected.

2. Right-click on the object and select Edit then Move point.

3. Click on the point to move.

4. Click in the new location for the point.

5. To complete click or press Enter or right-click.

   The point is moved to the new location.

To reshape an object

1. Select the object in the project explorer and using the Select edges mode, select a single edge.

2. Right-click on the selected edge and select Edit then Insert points.

3. Pick a line to replace.

4. Click in the location for the new point(s).

5. To complete click or press Enter or right-click.

   The object is reshaped to encompass the new point(s).

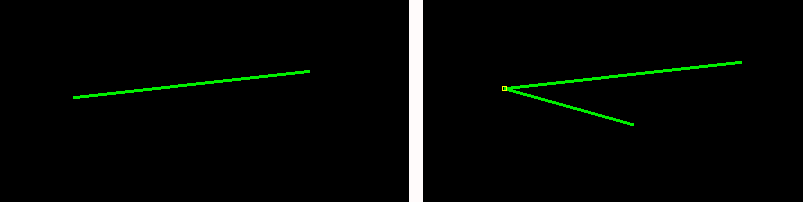

To extend (add to) an object

1. Select the object in the project explorer and using the Select points mode , draw a box over a corner of the object so that one point is selected.

2. Right-click on the selected point and select Edit then Add points.

3. Pick a point to add from.

4. Click in the location for the new point(s).

5. To complete click or press Enter or right-click.

   The object has new edges added to encompass the new point(s). Add plane
