View Manipulation

Setting the manipulation mode

Setting the centre of rotation

Viewing a scan from origin

Making the screen zoom into the point that you want to see

Adjusting the pixel size

Hands free manipulation

Display panoramic data

Set camera view point

Quitting geometry queries

Setting the manipulation mode

The view manipulation functions are found in the View window and at the top of the view window toolbar .

    or from the view window tool bar

On the View ribbon tab navigate to the Camera group. From the Z up mode drop-down list select one of the following:

  Icon Description Shortcut
  The Z axis is constrained to move in the vertical plane in your viewing direction, regardless of viewing angle. This is the default mode. Z
  Look from mode – fixes the viewpoint. Use to maintain a fixed location in space. K
  Plan view mode – sets the view to look down on the data. P
  Screen mode – view can be rotated in any orientation. S

Tip: To reset a view window to plan view and zoomed to the data extents, click the Predefined views icon at the left end of the view window toolbar.

Setting the centre of rotation

When rotating a view, the centre of rotation is at the position of the axes in the view window. You can change the centre of rotation a number of ways.

The easiest method of relocating the centre of rotation is by clicking the keyboard C key followed by clicking at the new desired point.

For a more precise location for the centre of rotation, enter the coordinates into the status bar followed by the Complete or Enter.

Tip: Set the centre of rotation near the area of interest in the data set. This will ensure that the data you are interested in does not disappear when you rotate a view.

Tip: If the axes is blocking data from view, right-click and select Show axes to deselect it. Select it again to redisplay the axes.

back to the top

Viewing a scan from origin

To view a scan from its origin (from the scanners point of view).

  1. Right-click on a point in the scan to open the context menu.

  1. Select view scan from origin button.

    The scan will now re-orientate to view all points from the scanners perspective.

Alternatively

  1. Change the selection mode to point select, if it isn't in that mode.

  2. Select a point in the scan .

  3. Click the O key.

    The scan will now re-orientate to view all points from the scanners perspective.

back to the top

Making the screen zoom into the point that you want to see

Place the mouse cursor over the point of interest, hold down the Alt key and use the mouse wheel to zoom in to the cursors location.

Adjusting the pixel size

The points or the pixels size can be increased or decreased to enhance visibility.

  • Pressing the + key will increase the pixel size.

  • Pressing the - key will decrease the pixel size.

Hands free manipulation

In this mode the Alt key does not need to be pressed to manipulate the objects with the mouse.

To select the hands free manipulation click the hands free button just above the project explorer.

Tip: Hold down Shift when manipulating the view to slow the rate of movement.

Displaying the panoramic data

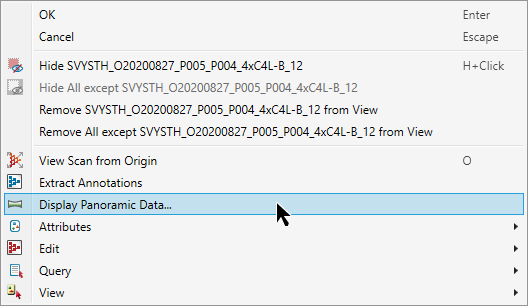

  1. Right-click on any point in the scan to open the context menu.

  2. Select Display Panoramic Data... to view the photo captured by the scanner.

  3. Use standard scan manipulation techniques to pan around.

Set a camera view point

This can be used to view the scene from a defined point.

  1. On the View ribbon tab navigate to the Camera group and select Set View Point.

    Or from the view window tool bar select the Set View Point

  2. Click a point in the scene to place the Camera position the position to look from.

  3. Click a point in the same scene where you want to be Looking at.

  4. The view window will rotate and shift to re arrange your view.

Quitting geometry queries

The following geometry queries will display the status bar to indicate that they are active:

  • Point query
  • Distance query
  • Geometry query
  • Spot Height query

Depending on which tool is active other operations will become difficult to perform.

To quit the query tools click the in the status bar (bottom left of the screen) or press the Esc key.

Refer to the other functions of the view window toolbar for more advanced viewing features.

To move objects within the 3D space of the view window, use the Freehand manipulation tool .
