Move Points

Use Move points to move an existing point to a new location. The point can be part of a line, a polygon, a circle, a surface or any other compatible object.

1. On the Edit ribbon tab navigate to the Primitives group and select Move Points.
   The status bar will display the question to pick a point to move.



2. Select the point to move in the view window.
   The status bar will display the question to specify a new location.



3. Click at the new location or enter coordinates in the status bar.
   The function is reset and ready for moving another point.

4. To exit the function when finished right-click or click in the status bar.

5. To exit (without carrying out function) right-click or press Esc or click the in the status bar.

Note: To assist in the task, you can use the Action plane as well as the Snap modes to accurately select points.

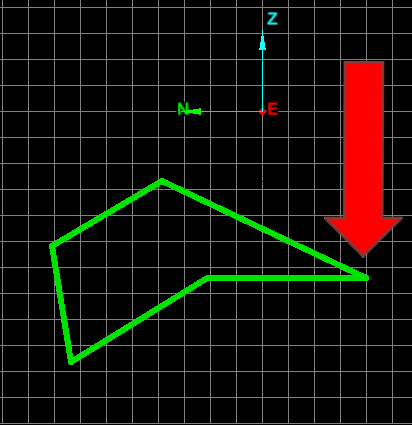

Example of moving a point in a polygon.

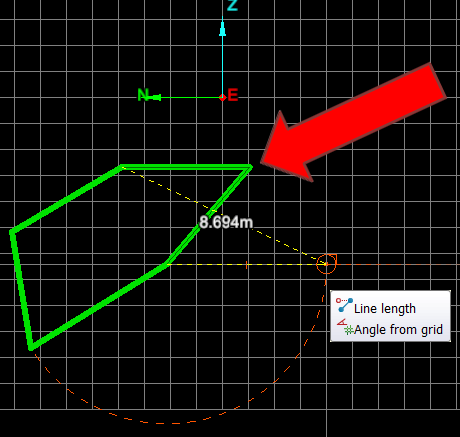

Example of move completed.

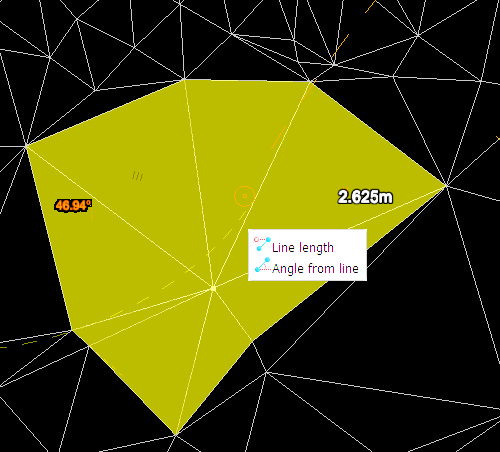

Moving a point in a surface.
