Add Facets

Use Add facets to add extra facets to a surface. Each facet is made up of three corners (points). The new facet(s) can be directly attached (sharing a side) or not attached to the existing surface.

1. Right-click the surface and select View then select Wireframe to see the facets of a surface more clearly.

2. On the Edit ribbon tab navigate to the Primitives group and select Add Facets.

3. Select surface to add extra facet(s) to.

4. Click on a desired point to start defining the new facet. Click two more points to complete the facet.

5. You can continue making facets, or you can complete and exit by right-clicking or clicking in the status bar.
   Press Esc or click in the status bar to exit the function and ignore changes.

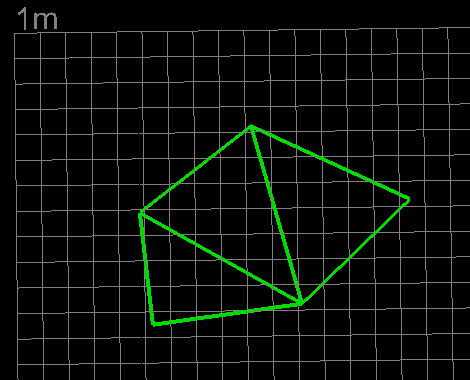

Select wireframe mode to view facets clearly.

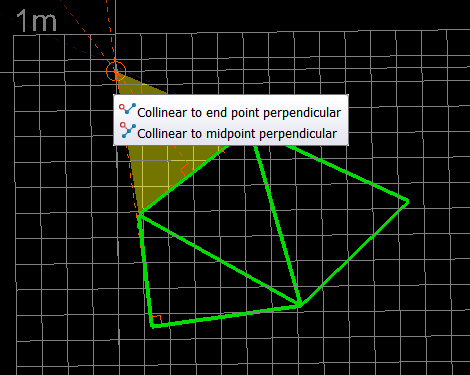

Select surface and add facet.

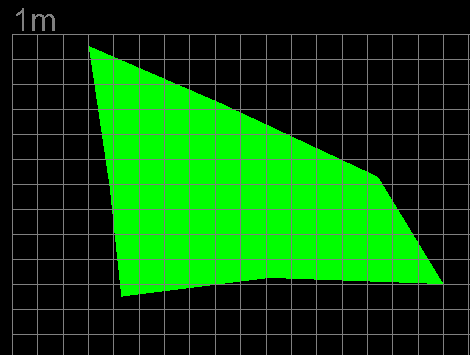

Finished surface example with two extra facets and displayed in smooth shaded surface mode.
