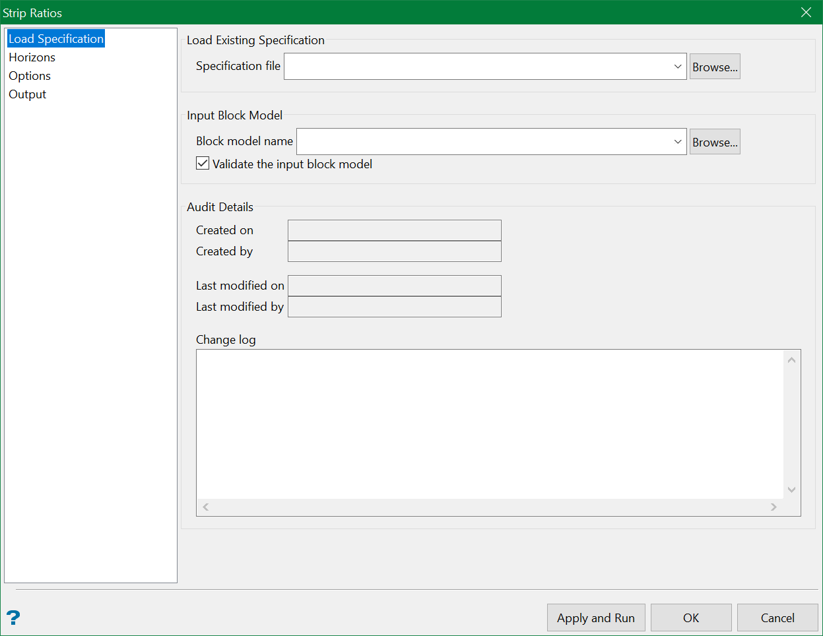

Load Specifications
Load existing specification
If available, select an existing Strip Ratio Specification file from the drop down list. Click Browse to select a specification file from a location other than the current working directory. Strip Ratio specification files have a .rom_ratios extension.
If a specification file does not exist, panel configurations can be saved in the Output subpanel. See Output.
Input block model
Select the input stratigraphic block model on which the Strip Ratio will be performed. It is recommended that only HARP style block models created using Grid Calc > Integrated Stratigraphic Modelling > Create HARP Model are used.
Validate the input block model
Select this option to check that the input model doesn't contain sub-blocking. Models that include sub-blocking cannot be used to accurately calculate the stripping ratios.
Audit details and Change Log
Audit details are automatically populated when the specification is created. The details will update each time the specification is run. Enter pertinent details of a particular specification run in the Change Log area. Entries are saved in the specification file for auditing purposes.
