Hole

Source file: context-hole.htm

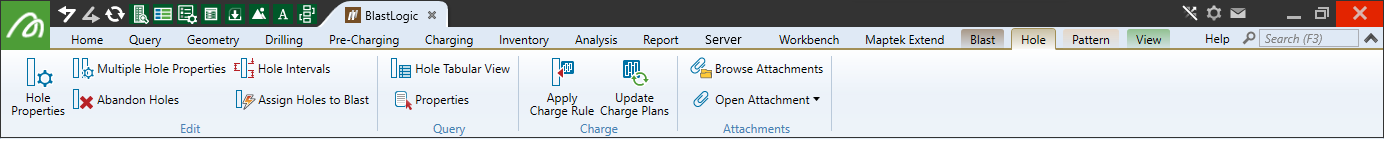

The Hole context sensitive ribbon contains tools specifically related to holes.

Tool Location on the ribbon Operation
Hole Properties Hole context sensitive ribbon
> Edit group
> Hole Properties		 For information on the Hole Properties tool, see the Hole properties section of the Hole topic.
Multiple Hole Properties Hole context sensitive ribbon
> Edit group
> Multiple Hole Properties		 For information on the Multiple Hole Properties tool, see the Multiple hole properties section of the Hole topic.
Abandon Holes Hole context sensitive ribbon
> Edit group
> Abandon Holes		 For detailed information on abandoning holes, see the information below.
Hole Intervals Hole context sensitive ribbon
> Edit group
> Hole Intervals		 For information on the Hole Intervals tool, see the Edit intervals section of the Hole topic.
Assign Holes to Blast Hole context sensitive ribbon
> Edit group
> Assign Holes to Blast		 For information on assigning holes to a blast, see Assign Holes to Blast.
Hole Tabular View Hole context sensitive ribbon
> Query group
> Hole Tabular View		 For information on the Hole Tabular View tool, see the Hole tabular view section of the Hole topic.
Properties Hole context sensitive ribbon
> Query group
> Properties		 For information on the Properties tool, see the Properties section of the Data topic.
Apply Charge Rule Hole context sensitive ribbon
> Charge group
> Apply Charge Rule		 For information on applying a charge rule, see Applying a charge rule.
Update Charge Plans Hole context sensitive ribbon
> Charge group
> Update Charge Plans		 For information on updating charge plans, see Update Charge Plans.
Browse Attachments Hole context sensitive ribbon
> Attachments group
> Browse Attachments		 For information on the Browse Attachments tool, see the Browse Attachments section of the Attachment page.
Open Attachment Hole context sensitive ribbon
> Attachments group
> Open Attachment		 The Open Attachment tool allows you to view and open attachments associated with a single hole. Select the tool drop-down to view the attachments and select the desired attachment to open it in a new view window.

Abandon Holes

An abandoned hole is not considered to be 'fired' with the blast, despite still being associated with the blast.

  • A published hole cannot be abandoned if there is 'loaded' or 'reconciled' explosive data recorded to that hole.

  • The abandoned holes with unsynchronised load data recorded to them will resume an active state when the device next synchronises.

To abandon a set of holes, follow these steps:

  1. Select the holes to be abandoned.

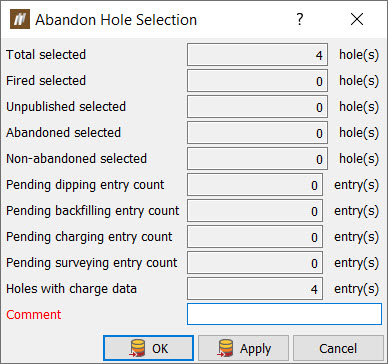

  2. Go to Hole > Edit > Abandon Holes.The following panel is displayed:

    The panel shows the number of holes to be abandoned and any pending entries that will be cancelled as a result of the holes being abandoned.

  3. Enter a comment and click OK or Apply. A confirmation message summarising the holes and entries to be abandoned and cancelled will be displayed.

  4. Click Yes to continue.
