Extend to Intersection

Source file: extend-discontinuity-to-intersection.htm

This function helps to visualise discontinuities, as though they were spread across an entire pit. It will show where they would appear if they were to extend until they intersect each other.

Note:  There is no panel to populate.

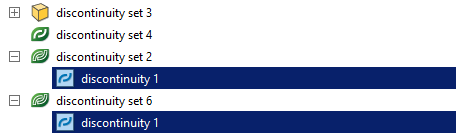

1. Select discontinuities (use methods described under Geotechnical tools, such as Query and Extract).

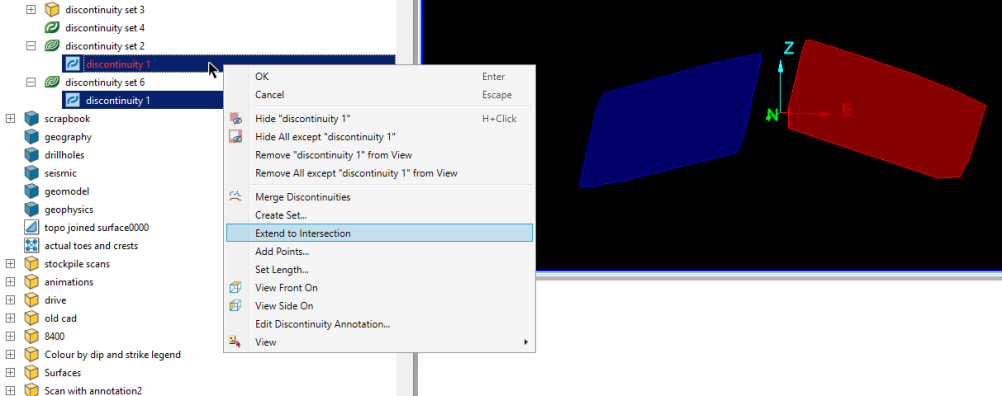

2. On the Geotechnical ribbon tab, go to the Edit group and select Extend to Intersection,  or right-click one of the discontinuities and choose Extend to Intersection.



3. PointModeller will extend the selected discontinuities until they intersect each other.
