Register

Source file: labs-register-group.htm

The Register group of the Labs tab provides additional tools to manage and assist with scan registration.

Verify Registration

Verify the registration of objects.

Registration I/O

Import, export and print registrations.

Set Scan Origin

Set a scan's origin coordinates to a specific location without altering coordinates of its points.

Coordinate Calculator

Convert geodetic coordinates between coordinate systems.

Visualise Geoid

Visualise a geoid as a points grid.

Assisted Initial Positioning

Position a point cloud manually, with automatic rotation estimation.

Verify Registration

Raw scan data can have positional errors resulting from many factors, such as the scanner's precision and accuracy, environmental conditions, and types of material being scanned. Other objects may also have positional errors as a result. Registration involves matching and overlapping individual objects of neighbouring areas to build up a model of an entire scene. Once the objects have been suitably registered, you can use the registration verification tool to check the resulting accuracy of the combined regions.

The Verify Registration tool provides a summary of the registration or alignment error between common regions under investigation. The tool includes metrics and warning messages. Errors are reported as RMS (Root Mean Square) value differences between corresponding points on objects where they overlap.

Note:  This tool is intended to indicate variations or errors that exist at a given point in time, but is not intended to compare time lapse situations, such as movement in a pit wall over a month, or change in material excavated over a week.

  • To verify registration, follow these steps:

    1. On the Position and Filter tab, or on the Labs tab, in the Register group, click Verify Registration.

    2. Highlight at least two comparable objects to be verified in the project explorer.

    3. Click to add objects to the verification set.

      The verification process will begin immediately.

    4. Click any of the other buttons as required:

      • Click to clear the table.

      • Click to disable automatic updates of the registration table.

      • Click to check and modify registration settings, as described below.

    5. Click to fix all selected objects automatically. This attempts to auto-register the objects starting from the current best registered to the worst.

      Note:  The Auto-fix all feature is currently only available when the registration verification tool is selected from the Labs tab or menu.

    6. Click to generate a PDF report.

The report size will vary, depending on the number of objects selected for verification. Verification values are calculated between all objects that overlap.

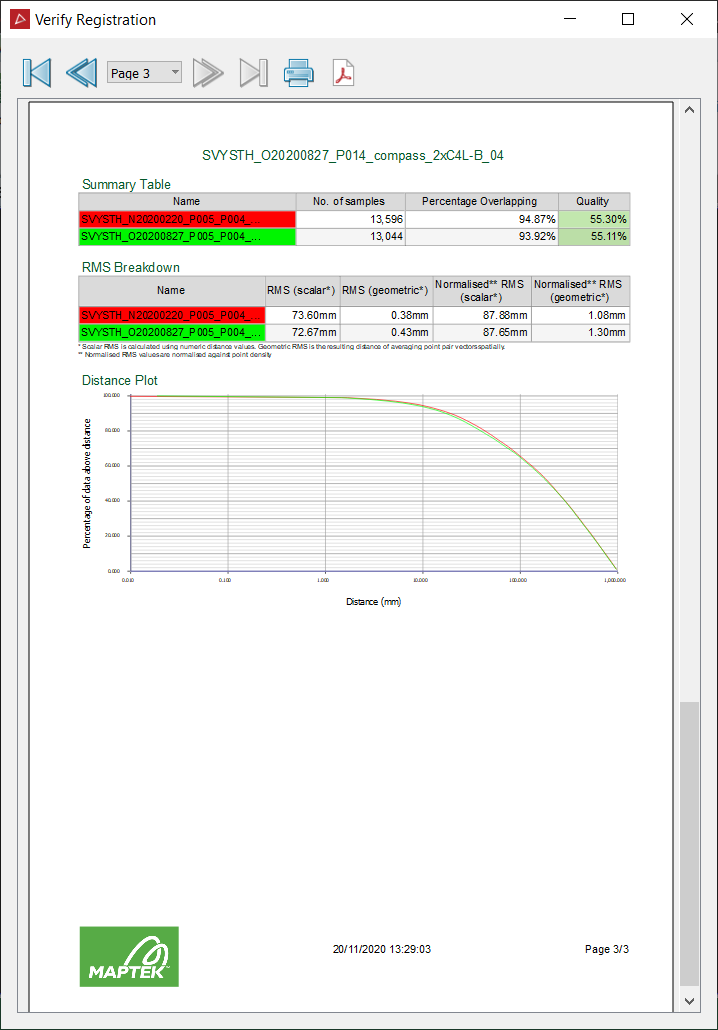

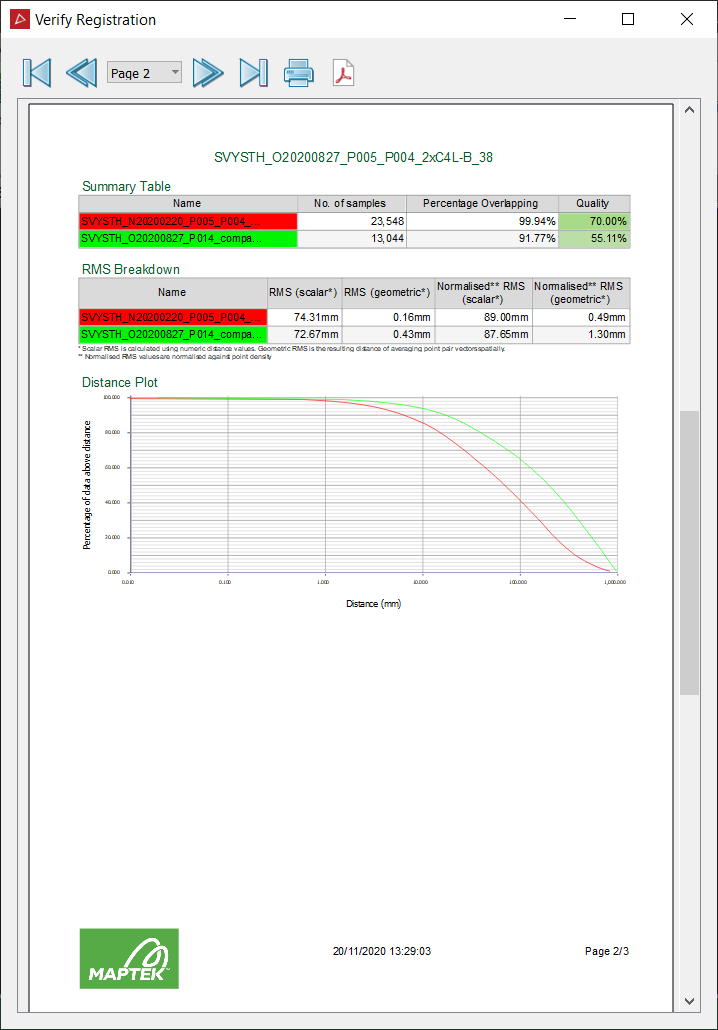

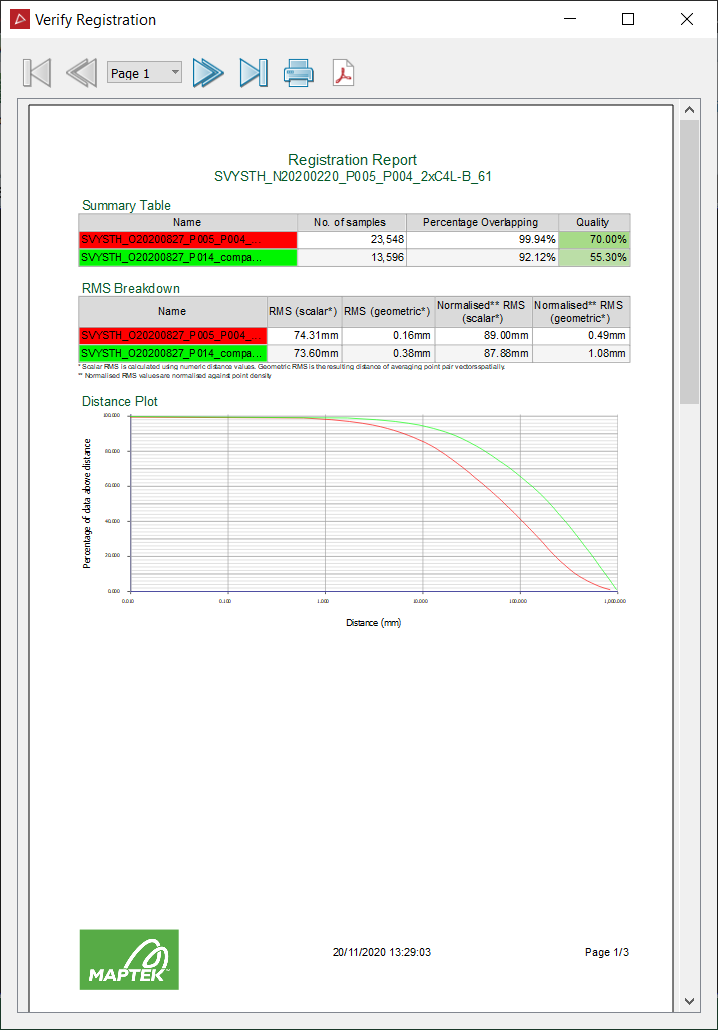

Example of a three page registration verification report.

Registration I/O

The Registration I/O tool enables you to save registration data of specific objects. The registration data can then be recalled and re-applied to one or more objects. The exported registration data for each object is saved in a single file.

Note:  Recalled registrations should only be applied to scans with the same scanner location and orientation as the original.

The Registration I/O tool has the following options:

  • Print registration will print registration data to a report window.
  • Import registration from will import registration data from a file and apply to selected objects.
  • Export registration data to will export registration data from a selected object into a text file.
  • To import and export registration

    1. Select objects for registration I/O.

    2. On the Labs tab, in the Register group, click Registration I/O.

    3. Select the operation to apply.

    4. Specify file name, or search for a file as required.

    5. Click OK or Apply to complete.

Typical information contained in a Registration I/O file.

Registration data will be displayed in the report window.

Set Scan Origin

The Set Scan Origin tool allows you to edit and set a new origin for scan data, as follows:

  1. Select the scan data to be changed.

  2. On the Labs tab, in the Register group, click Set scan origin.

  3. Enter new origin coordinates or select a coordinate field and click on point in the view window.

  4. Click on OK or Apply to finish.

Coordinate Calculator

The Coordinate Calculator converts a location defined in one coordinate system to the equivalent coordinates in another coordinate system.

To calculate new coordinates, proceed as follows:

  1. On the Labs tab, in the Register group, click Coordinate Calculator.

  2. Define Source coordinate system by picking an object, or clicking the New system button and entering details of the appropriate coordinate system in the panel that opens.

    Tip:  To set up a coordinate system manually, see Coordinates.

    Note:  Click >> to expand the panel and show more details of the selected system.

  3. Repeat step 2 for the Target coordinate system.

  4. Select a coordinate field for the Source point at the bottom left of the panel, the either click on a point in the view window or enter the coordinates. The conversion to the target coordinates will appear automatically in the Target point fields at the bottom right of the panel.

  5. Click Report to output the details to the report window.

Main panel showing Source point and Target point input areas. Note inputs and resulting conversion process of source point to target point.

Coordinate system panel that opens when defining a coordinate system and the Datum panel that opens when selecting a datum.

Note:  For more information on coordinate systems, see Coordinate Systems.

Visualise Geoid

The Visualise Geoid tool opens and displays the geoid values as a surface.

Note:  For more information on geoids, see Geoids.

To display geoid values, proceed as follows:

  1. On the Labs tab, in the Register group, click Visualise Geoid.

  2. Select a geoid that has already been imported, or read data in from a geoid file.

    Note:  Geoid files must have one of these extensions: .asc, .byn, .ggf, or .gtx.

Assisted Initial Positioning

The Assisted Initial Positioning tool allows you to register unregistered scans against a reference scan. These methods are relatively easy to use and produce a reasonably good fit for a first attempt. Once positioned, complete the registration with Global Registration (see Global).

Note:   The Assisted Initial Positioning tool requires that the scans be level or approximately level.

  • To position scans with the Assisted Initial Positioning tool, follow these steps:

    1. Register the reference scan .

    2. View the reference and unregistered scans in a view window.

    3. On the Position and Filter tab, in the Register group, click Assisted Initial Positioning.

    4. Select an unregistered scan at a Movement point that can be dragged onto the equivalent position on the reference scan. The unregistered scan will be oriented to fit over the reference scan in the appropriate position. You can zoom in and continue adjusting the position to acquire the closest fit.
      • Matching distance is the maximum distance points from one point set can be from corresponding points in the other point set, to be considered a match.
      • Minimum separation pre-filters data using minimum separation distance to improve speed.
    5. Continue the process with all other unregistered scans by clicking on an appropriate movement point and dragging it onto the reference scan.

    6. Press the OK or Apply to finish and accept the alignments.

    7. Proceed with global registration. See Global.

An initial group of unregistered scans. Reference scan indicated by the axes.

Unregistered scans dragged onto the reference scan.
