maptek.vulcan.block_model

This class allows access to the block model structures within Vulcan.

To download all the example scripts on this page, click Python Block Model Example Scripts.

Block model template script

The follow script is a template showing the basic requirements needed to create a block model using Python. This script will serve as an example of several function calls.

# Filename: bm_blockmodel_template.py
# Purpose: Create a new regular block model.
# Returns: regular block model.

from maptek import vulcan

# Step 1: Create a block model object.
bm_name = 'example.bmf'
with vulcan.block_model(bm_name) as bm:

    # Step 2: Define variables that will hold the model parameters.
    # These hold the model extents and number of blocks in the
    # x, y, and z directions.
    xbegin, ybegin, zbegin = 0, 0, 0
    xend, yend, zend = 50, 50, 50
    x_num_block, y_num_block, z_num_block = 5, 5, 5

    # Step 3: Create a block model.
    # At this stage, only the extents and number of blocks will be set. No
    # actual blocks are created yet. Note that this will clear any information
    # about the previous block model the object referred to.
    bm.create_regular(bm_name,
    xbegin, ybegin, zbegin,
    xend, yend, zend,
    x_num_block, y_num_block, z_num_block)

    # Step 4: Add variables to block model.
    # args : (name, type, default, description)
    bm.add_variable('class', 'integer', '-99', '1, 2, or 3')
    bm.add_variable('cu', 'float', '-99.0', 'copper')
    bm.add_variable('au', 'double', '-99.0', 'gold')
    bm.add_variable('byte', 'byte', '0', 'byte')
    bm.add_variable('geocod', 'short', '-99', 'flag')
    bm.add_variable('lith', 'name', 'none', 'geology')

    # Step 5: Move the origin of the block model to the desired location.
    # When a block model is initially created, it is set at a location of
    # (0.0, 0.0, 0.0).
    bm.translate(77900.0, 4350.0, -320.0)  # enter xyz translation distances

    # Step 6: Set the rotation parameters.
    # For this example, we want a bearing of 62 degrees. To get that, we have
    # to subtract standard Vulcan 90 degrees. Using mod 360 constrains the
    # answer within 360 degrees.
    bearing = (62 - 90) % 360
    dip = 0
    plunge = 0
    bm.rotate(dip, plunge, bearing)

    # Step 7: Set the block length.
    xlen = int(xend/x_num_block)  # 50/5 = 10
    ylen = int(yend/y_num_block)  # 50/5 = 10
    zlen = int(zend/z_num_block)  # 50/5 = 10

    # Step 8: Add blocks to the model.  Note that blocks are added in model
    # space NOT world space. Each block is defined from the lower left of the
    # 3D cube to the upper right of the 3D cube.
    for i in range(0, xend, xlen):
        for j in range(0, yend, ylen):
            for k in range(0, zend, zlen):
                # calc the min/max block
                xmin = i
                ymin = j
                zmin = k
                xmax = i + xlen
                ymax = j + ylen
                zmax = k + zlen

                # add block to block model
                bm.add_block(xmin, ymin, zmin, xmax, ymax, zmax)

    # Step 9: Index block model, then verify results.
    verify_index = bm.index_model()
    if verify_index == 0:
        print("Block model has been indexed.")
    else:
        print("Block model has not been indexed.")

Navigating through a block model

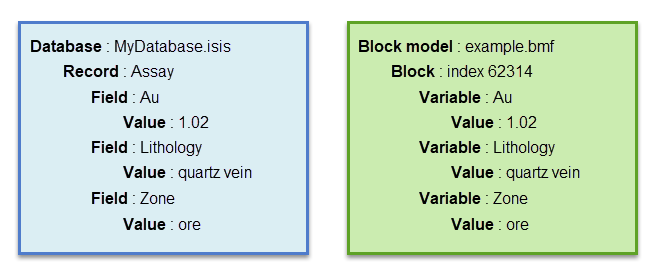

Python treats block models in a way similar to working with a database. Each block can be thought of as representing a record, and the variables found within that block represent a field within that record.

To create or edit a block model, you will need to iterate through the model in a manner that allows you access to each block. The following navigational functions are ways of moving through a block model:

rewind(self) -> int - 0 if successful, 1 otherwise.

eof(self) -> bool

next(self) -> int - 0 if successful, 1 otherwise.

get_position(self) -> float - the current record position.

set_position(self, pos) -> int - 0 if successful, 1 otherwise.

The rewind() function sets the position within the model to the beginning.

The eof() function sets the position to the end of the model.

The next() function advances the position by one record (or block).

The set_position() and get_position() functions are used when you know the block and need to reference it again later. For example, using some sort of operation in which you need to review the entire model, then go back.

# Filename: bm_get_position.py
# Purpose: Get the current record position.
# Returns: float - the current record position.

from maptek import vulcan

blockmodel = 'example.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_open(), 'f"{blockmodel} is not open."'

    bm.rewind()  # Move to the first record.

    while not bm.eof():
        index = bm.get_position()  # Get current record position = block index
        print(f'{index = }')
        bm.next()  # Move to the next record.

However, the navigational functions can be superseded by just iterating.

for block in block_model:
    # Do something

Is the same as the older:

while not block_model.eof():
    # Do something
    block_model.next() # If this is forgotten or missed it will loop forever

add_block(self, x0, y0, z0, x1, y1, z1) -> int

Add a new block to the model.

Note: The block location is not validated upon adding. The block should be sized equal to a parent or sub block size and should be inserted at a location that correctly aligns to those coordinates. This function should only be used where no blocks exist (such as deleted blocks). Also, note that a newly created block will overlap existing blocks if blocks already exists at the location.

Parameters

Note: This function uses block coordinates as the input arguments, not real-world coordinates.

x0 : float - The X coordinate of the lower extent of the block.

y0 : float - The Y coordinate of the lower extent of the block.

z0 : float - The Z coordinate of the lower extent of the block.

x1 : float - The X coordinate of the upper extent of the block.

y1 : float - The Y coordinate of the upper extent of the block.

z1 : float - The Z coordinate of the upper extent of the block.

Returns

Integer - 0 if successful, 1 otherwise.

Raises PermissionError if the block model is open in read only mode.

# Filename: bm_add_block.py
# Purpose: Add a new block to the model.
# Returns: integer, 0 if successful, 1 otherwise.

from maptek import vulcan

blockmodel = 'example.bmf'  # input block model

with vulcan.block_model(blockmodel, 'w') as bm:  # open the block model
    assert bm.is_open(), 'f"{blockmodel} is not open."'

    x0 = 0.0  # X coordinate of the lower extent of the block.
    y0 = 0.0  # Y coordinate of the lower extent of the block.
    z0 = 0.0  # Z coordinate of the lower extent of the block.
    x1 = 10.0  # X coordinate of the upper extent of the block.
    y1 = 10.0  # Y coordinate of the upper extent of the block.
    z1 = 10.0  # Z coordinate of the upper extent of the block.

    state = bm.add_block(x0, y0, z0, x1, y1, z1)

    print(f'{state = }')  # verify: 0 if successful, 1 otherwise.

add_variable(self, *args, **kwargs) -> int

Add a variable to a block model.

Parameters

name : str - Variable name

type : str - Variable type (name, byte, short, integer, float, double)

default : str - Default variable value

description : str - Variable description

Returns

Integer - 0 = success, Non-zero = failure

# Filename: bm_add_variable.py
# Purpose: Add a variable to a block model.
# Returns: Integer: 0 = success, Non-zero = failure.

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_open(), 'f"{blockmodel} is not open."'

    name, type, default, description = 'au', 'double', '-99.0', 'oz per ton'

    if not bm.is_field(name):  # check if already variable exists

        validate = bm.add_variable(name, type, default, description)

        assert validate == 0, 'Error: Failed to create variable'
        print(f"{name = } successfully added.")
    else:
        print(f"{name = } already exists.")

block_extent(self) -> list

Get the extent of the currently selected block.

Returns

list[float] - For most models, this will be in the form of

[Xmin, Ymin, Zmin, Xmax, Ymax, Zmax]

where the min values are the coordinates of the lower extent, and the max values are the coordinates of the upper extent.

For HARP models, the corner offsets will also be shown.

# Filename: bm_block_extent.py
# Purpose: Get the extent of the currently selected block.
# Returns: List

from maptek import vulcan

blockmodel = 'example.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_open(), 'f"{blockmodel} is not open."'

    # get single block extent
    bm.set_position(1)  # select block using index
    s_ext = bm.block_extent()  # get block extent
    print(s_ext)  # print results

    # iterate through block model to get all block extents
    for block in bm:
        index = bm.get_position()  # get block index
        ext = bm.block_extent()  # get block extent
        print(f'{index} : {ext}')  # print results

close(self) -> int

Close the block model file.

Returns

Integer - 0 if successful, 1 otherwise.

# Filename: bm_close.py
# Purpose: Close a block model.
# Returns: Integer

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model
bm = vulcan.block_model(blockmodel)  # open the block model

if bm:
    print(f'{blockmodel} successfully opened.')

state = bm.close()  # close block model
print(state)  # print result of close: 0 if successful, 1 otherwise


create_irregular(self, name, x0, y0, z0, x1, y1, z1, nx, ny, nz, sub_nx, sub_ny, sub_nz) -> int

Create a new irregular block model optionally with a sub schema.

Note: This will clear any information about the previous block model the object referred to.

Parameters

name : str - The file path for the new block model.

x0 : float - The minimum X coordinate of the model extent.

y0 : float - The minimum Y coordinate of the model extent.

z0 : float - The minimum Z coordinate of the model extent.

x1 : float - The maximum X coordinate of the model extent.

y1 : float - The maximum Y coordinate of the model extent.

z1 : float - The maximum Z coordinate of the model extent.

nx : int - The number of blocks in the X direction for the main schema.

ny : int - The number of blocks in the Y direction for the main schema.

nz : int - The number of blocks in the Z direction for the main schema.

sub_nx : int - The number of blocks in the X direction for the sub schema.

sub_ny : int - The number of blocks in the Y direction for the sub schema.

sub_nz : int - The number of blocks in the Z direction for the sub schema.

Returns

Integer - 0 if successful, 1 otherwise.

# Filename: bm_create_irregular.py
# Purpose: Create a new regular block model.
# Returns: Integer - 0 if successful, 1 otherwise.

from maptek import vulcan

# Step 1: Create a block model object.
name = 'example.bmf'
with vulcan.block_model(name) as bm:
    # Step 2: Define variables that will hold the model parameters.
    # These hold the model extents and number of blocks in the
    # x, y, and z directions.
    xbegin, ybegin, zbegin = 0, 0, 0  # minimum coordinate of model extent
    xend, yend, zend = 50, 50, 50  # maximum coordinate of model extent
    p_nx, p_ny, p_nz = 10, 10, 10  # number of blocks in the main schema
    sub_nx, sub_ny, sub_nz = 5, 5, 5  # number of blocks in the sub schema

    # Step 3: Create a block model.
    # At this stage, only the extents and number of blocks will be set. No
    # actual blocks are created yet. Note that this will clear any information
    # about the previous block model the object referred to.
    bm.create_irregular(name,
                        xbegin, ybegin, zbegin,
                        xend, yend, zend,
                        p_nx, p_ny, p_nz,
                        sub_nx, sub_ny, sub_nz)

    # Step 4: Add variables to block model.
    # args : (name, type, default, description)
    bm.add_variable('class', 'integer', '-99', '1, 2, or 3')
    bm.add_variable('cu', 'float', '-99.0', 'copper')
    bm.add_variable('au', 'double', '-99.0', 'gold')
    bm.add_variable('byte', 'byte', '0', 'byte')
    bm.add_variable('geocod', 'short', '-99', 'flag')
    bm.add_variable('lith', 'name', 'none', 'geology')

    # Step 5: Move the origin of the block model to the desired location.
    # When a block model is initially created, it is set at a location of
    # (0.0, 0.0, 0.0).
    bm.translate(77900.0, 4350.0, -320.0)  # enter xyz translation distances

    # Step 6: Set the rotation parameters.
    # For this example, we want a bearing of 62 degrees. To get that, we have
    # to subtract standard Vulcan 90 degrees. Using mod 360 constrains the
    # answer within 360 degrees.
    x = 62  # (62 - 90) % 360
    y = 25
    z = 0
    bm.rotate(x, y, z)

    # Step 7: Set the block length.
    xlen = int(xend / p_nx)  # 50/5 = 10
    ylen = int(yend / p_ny)  # 50/5 = 10
    zlen = int(zend / p_nz)  # 50/5 = 10

    # Step 8: Add blocks to the model.  Note that blocks are added in model
    # space NOT world space. Each block is defined from the lower left of the
    # 3D cube to the upper right of the 3D cube.
    for i in range(0, xend, xlen):
        for j in range(0, yend, ylen):
            for k in range(0, zend, zlen):
                # calc the min/max block
                xmin = i
                ymin = j
                zmin = k
                xmax = i + xlen
                ymax = j + ylen
                zmax = k + zlen

    # add block to block model
    bm.add_block(xmin, ymin, zmin, xmax, ymax, zmax)

    # Step 9: Index block model, then verify results.
    verify_index = bm.index_model()
    if verify_index == 0:
        print("Block model has been indexed.")
    else:
        print("Block model has not been indexed.")

create_regular(self, name, x0, y0, z0, x1, y1, z1, nx, ny, nz) -> int

Create a new regular block model.

Note: This will clear any information about the previous block model the object referred to.

Parameters

name : str - The file path for the new block model.

x0 : float - The minimum X coordinate of the model extent.

y0 : float - The minimum Y coordinate of the model extent.

z0 : float - The minimum Z coordinate of the model extent.

x1 : float - The maximum X coordinate of the model extent.

y1 : float - The maximum Y coordinate of the model extent.

z1 : float - The maximum Z coordinate of the model extent.

nx : int - The number of blocks in the X direction.

ny : int - The number of blocks in the Y direction.

nz : int - The number of blocks in the Z direction.

Returns:

Integer - 0 if successful, 1 otherwise.

For example code see Block model template script.

create_strat(self, name, x0, y0, z0, x1, y1, z1, nx, ny) -> int

Create a new stratigraphic block model.

Note: This will clear any information about the previous block model the object referred to.

Parameters

name : str - The file path for the new block model.

x0 : float - The minimum X coordinate of the model extent.

y0 : float - The minimum Y coordinate of the model extent.

z0 : float - The minimum Z coordinate of the model extent.

x1 : float - The maximum X coordinate of the model extent.

y1 : float - The maximum Y coordinate of the model extent.

z1 : float - The maximum Z coordinate of the model extent.

nx : int - The number of blocks in the X direction.

ny : int - The number of blocks in the Y direction.

Returns:

Integer - 0 if successful, 1 otherwise.

# Filename: bm_create_strat.py
# Purpose: Create a stratigraphic block model.
# Returns: Integer - 0 if successful, 1 if not.

from maptek import vulcan

# Step 1: Create a block model object.
with vulcan.block_model() as bm:

    # Step 2: Define variables that will hold the model parameters.
    # These hold the model extents and number of blocks in the
    # x and y directions.
    x0, y0, z0 = 0, 0, 0
    x1, y1, z1 = 50, 50, 5
    nx, ny = 5, 5

    # Step 3: Create a stratigraphic block model.
    # At this stage, only the extents and number of blocks will be set. No
    # actual blocks are created yet. Note that this will clear any information
    # about the previous block model the object referred to.
    bm.create_strat('example_strat.bmf',
                    x0, y0, z0,
                    x1, y1, z1,
                    nx, ny)

    # Step 4: Add variables to block model.
    # args : (name, type, default, description)
    bm.add_variable('class', 'integer', '-99', '1=measured, 2=indicated, 3=infered')
    bm.add_variable('ore', 'float', '-99', 'coal')
    bm.add_variable('lith', 'name', 'none', 'geology')

    # Step 5: Move the origin of the block model to the desired location.
    # When a block model is initially created, it is set at a location of
    # (0.0, 0.0, 0.0).
    bm.translate(77900.0, 4350.0, -320.0)  # enter xyz translation distances

    # Step 6: Set the rotation parameters.
    # For this example, we want a bearing of 62 degrees. To get that, we have
    # to subtract standard Vulcan 90 degrees. Using mod 360 constrains the
    # answer within 360 degrees.
    bearing = (62 - 90) % 360
    dip = 0
    plunge = 0
    bm.rotate(dip, plunge, bearing)

    # Step 7: Set the block length.
    xlen = int(x1/nx)  # 50/5 = 10
    ylen = int(y1/ny)  # 50/5 = 10
    zlen = 5

    # Step 8: Add blocks to the model.  Note that blocks are added in model
    # space NOT world space. Each block is defined from the lower left of the
    # 3D cube to the upper right of the 3D cube.
    for i in range(0, x1, xlen):
        for j in range(0, y1, ylen):
            for k in range(0, z1, zlen):
                # calc the min/max block
                xmin = i
                ymin = j
                zmin = k
                xmax = i + xlen
                ymax = j + ylen
                zmax = k + zlen

                # add block to block model
                bm.add_block(xmin, ymin, zmin, xmax, ymax, zmax)

    # Step 9: Index block model, then verify results.
    verify_index = bm.index_model()
    if verify_index == 0:
        print("Block model has been indexed.")
    else:
        print("Block model has not been indexed.")

creation_date(self) -> string

Check when the block model was created.

Returns

String - The date of the block model creation.

# Filename: bm_creation_date.py
# Purpose: Get the block model creation date.
# Returns: String

from maptek import vulcan

blockmodel = 'example.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the block model
    cr_date = bm.creation_date()  # get the creation date
    print(f"Creation date: {cr_date}")

delete_variable(self, name) -> int

Remove a variable from the block model.

Parameters

name : str - The name of the variable to delete.

Returns

Integer - 0 if successful, 1 otherwise.

# Filename: bm_delete_variable.py
# Purpose: Remove a variable from the block model.
# Returns: Integer - 0 if successful, 1 if not.

from maptek import vulcan

blockmodel = 'example.bmf'  # input block model
del_var = 'lith'  # variable to delete

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_field(del_var), f'Variable does not exist.'

    var = bm.delete_variable('lith')  # delete variable

    print(f'{var = }')

description(self) -> string

Get the description of the block model.

Note: The description is set by using Block > Manipulation > Edit Description.

Returns

String - The description.

# Filename: bm_description.py
# Purpose: Get the description of the block model.
# Returns: String - the description.

from maptek import vulcan

blockmodel = 'example.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the block model
    descript = bm.description()
    print(f'{descript = }')

field_default(self, name) -> float

Get the default value of a numeric variable.

Parameters

name : str - The variable name to get the default value for.

Returns

float - The default float value of the variable.

# Filename: bm_field_default.py
# Purpose: Get the default value of a numeric variable.
# Returns: Float

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:
    # get list of all numeric variables
    vars = bm.field_list_numbers()

    # iterate through list of variables to get default values
    for var in vars:
        default_val = bm.field_default(var)  # get default value
        print(f"Variable: {var}  Default value: {default_val}")

field_default_string(self, name) -> string

Get the default value of a string variable.

Parameters

name : str - The variable name to get the default value for.

Returns

String - The default string value of the variable.

# Filename: bm_field_default_string.py
# Purpose: Get the default value of a string variable.
# Returns: String

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:
    # get list of all string variables
    vars = bm.field_list_strings()

    # iterate through list of variables to get default values
    for var in vars:
        default_val = bm.field_default_string(var)  # get default value
        print(f"Variable: {var}  Default value: {default_val}")

field_description(self, name) -> string

Get the description of a variable.

Parameters

name : str - The variable name to get the description for.

Returns:

String - The description of the variable.

# Filename: bm_field_description.py
# Purpose: Get the description of a block model variable.
# Returns: String

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the blockmodel
    # get list of all numeric variables
    vars = bm.field_list()

    # iterate through variable list
    for var in vars:
        descript = bm.field_description(var)  # get variable description
        print(f'{var = :<15} {descript = }')

field_index(self, name) -> int

Get the index of a given variable in the block model.

Note: This function is an older version of get_variable_index() (shown below). It is kept in place to accommodate older scripts. However, newer scripts should use the get_variable_index() function instead.

Parameters

name : str - The variable to get the index for.

Returns

Integer - The index of the given variable.

# Filename: bm_field_index.py
# Purpose: Get the index of a block model variable.
# Returns: Integer

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the blockmodel
    vars = bm.field_list()  # get list of all variables

    # iterate through variable list
    for var in vars:
        field_ind = bm.field_index(var)  # get the index of the variable
        print(f'{var = :<15} {var_index = }')

field_list(self) -> list

Get the list of variables for the block model.

Returns

list[str] - The list of variable names.

# Filename: bm_field_list.py
# Purpose: Create list of the variables from a block model.
# Returns: List

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the blockmodel
    list_of_vars = bm.field_list()  # Get the list of variables
    for var in list_of_vars:
        print(var)

field_list_numbers(self) -> list

Get the list of numeric variables for the block model.

Returns

list[str] - The list of numeric variable names.

# Filename: bm_field_list_numbers.py
# Purpose: Create list of all numeric variables from a block model.
# Returns: List

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the blockmodel
    number_vars = bm.field_list_numbers()  # get the list of numeric variables
    for var in number_vars:
        print(var)

field_list_strings(self) -> list

Get the list of string variables for the block model.

Returns

list[str] - The list of string variable names.

# Filename: bm_field_list_numbers.py
# Purpose: Create list of all string variables from a block model.
# Returns: List

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the blockmodel
    string_vars = bm.field_list_strings()  # get the list of numeric variables
    for var in string_vars:
        print(var)

field_predefined(self, name) -> int

Check if a variable is a predefined field.

Parameters

name : str - The variable to check.

Returns

Integer - 1 if the variable is predefined, 0 otherwise.

# Filename: bm_field_predefined.py
# Purpose: Check if a variable is a predefined field.
# Returns: Integer - 1 if the variable is predefined, 0 otherwise.

from maptek import vulcan

blockmodel = 'example.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:
    # get list of all variables
    vars = bm.field_list()

    # iterate through list of variables
    for var in vars:
        val = bm.field_predefined(var)  # check if a variable is a predefined
        if val == 1:
            print(f"Variable: {var} - Predefined")
        elif val == 0:
            print(f"Variable: {var} - User defined")

field_type(self, name) -> string

Get the type of a field.

Parameters

name : str - The variable to get the type of.

Returns

String - The type of the variable. Possible valid return values (subject to change) are:

[float, double, integer, byte, name, short, sfloat, int64, bit]

Note: '***' is returned if the variable doesn't exist.

# Filename: bm_field_type.py
# Purpose: Get the variable type of input variable.
# Returns: String

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the blockmodel
    list_of_vars = bm.field_list()  # Get the list of variables

    for var in list_of_vars:
        var_type = bm.field_type(var)  # get the variable type
        print(f'Variable: {var}  Type: {var_type}')

find_world_xyz(self, x, y, z) -> int

Find a block at given real world coordinates and set the record position.

Parameters

x : float - The X coordinate to look for the block.

y : float - The Y coordinate to look for the block.

z : float - The Z coordinate to look for the block.

Returns

Integer - 0 if successful, 1 otherwise.

# Filename: bm_find_world_xyz.py
# Purpose: Find a block at given real world coordinates and set the record position.
# Returns: Integer - 0 if successful, 1 otherwise.

from maptek import vulcan

blockmodel = 'example.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_open(), 'f"{blockmodel} is not open."'

    state = bm.find_world_xyz(78000.0, 4500.0, -300.0)  # locate block

    print(state)

find_world_xyz_seam(self, p, seam) -> int
find_world_xyz_seam(self, x, y, z, seam) -> int

Find the seam at given real world coordinates.

Parameters

x : float - The X coordinate to look for the seam.

y : float - The Y coordinate to look for the seam.

p : list - point.

seam : str - The name of the seam.

Returns

Integer - 0 if successful, 1 otherwise.

code coming soon

find_xyz(self, x, y, z) -> int

Find a block at given model coordinates and set the record position.

Parameters

x : float - The X coordinate to look for the block.

y : float - The Y coordinate to look for the block.

z : float - The Z coordinate to look for the block.

Returns

Integer - 0 if successful, 1 otherwise.

# Filename: bm_find_xyz.py
# Purpose: Find a block at given block coordinates and set the record position.
# Returns: Integer - 0 if successful, 1 otherwise.

from maptek import vulcan

blockmodel = 'example.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_open(), 'f"{blockmodel} is not open."'

    state = bm.find_xyz(20.0, 20.0, 20.0)  # locate block

    print(f'{state = }')
    b_coord = bm.to_world(20.0, 20.0, 20.0)
    print(f'{b_coord = }')

find_xyz_seam(self, p, seam) -> int
find_xyz_seam(self, x, y, z, seam) -> int

Find the seam at given model coordinates.

Parameters

x : float - The X coordinate to look for the seam.

y : float - The Y coordinate to look for the seam.

p : list - point.

seam : str - The name of the seam.

Returns

Integer - 0 if successful, 1 otherwise.

code coming soon

get(self, name) -> float
get(self, k) -> float

Get the numeric value of a variable, either by name or by index.

Parameters

name : str - The name of the variable to get the value of.

k : int - The index of the variable to get the value of.

Returns

float - The value of the variable.

# Filename: bm_get.py
# Purpose: Get the value of a numeric block model variable.
# Returns: Float

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model
input_var = 'au_id'  # input variable

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_open(), 'f"{blockmodel} is not open."'

    # create lists to hold values
    value_by_name = []
    value_by_index = []

    # method 1: get values using variable name
    for block in bm:  # iterate through block model
        nval = bm.get(input_var)  # get value using name
        value_by_name.append(nval)  # add to list

    # method 2: get values using variable index
    for block in bm:  # iterate through block model
        index = bm.get_variable_index(input_var)  # get the index of the variable
        ival = bm.get(index)  # get value using index
        value_by_index.append(ival)  # add to list

    # print values of each list side by side to show they are identical
    for index, (by_name, by_index) in enumerate(zip(value_by_name, value_by_index)):
        print(f'{index = :<8} {by_name = :<8}  {by_index = }')

get_data( self, var, sel=None) -> numpy.array

Gets the values of a set of blocks, or all blocks if no selection is provided.

Parameters

variable : (str) - Variable to get data from.

sel : list[int] - List of block indices to get from such as the return from block_model.get_matches().

Returns

numpy.array() - NumPy array of all values for the specified variable.

Tip: It can be helpful to use this function with the get_data() function.

# Filename: bm_get_matches.py
# Purpose: Get the blocks that match the given match arguments.
# Returns: numpy.ndarray[Int64] - The indexes of the matched blocks.

from maptek import vulcan

blockmodel = 'example.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_open(), 'blockmodel is not open.'

    matches = bm.get_matches('''-C "rocktype eqs 'oxide'"''')
    data = bm.get_data('au', matches)  # get variable information

    print(data)

get_grid( self, var ) -> numpy.array

Returns a 3D i/j/k grid of block model values for a regular block model.

Parameters

var : str - Variable name to get data for.

Returns

numpy.array - 3D numpy array with block values in i/j/k or x/y/z order

code coming soon

get_matches(self, match_string) -> numpy.ndarray[Int64]

Get the blocks that match the given match arguments.

Parameters

selection : str

The selection criteria string.

Options	Descriptions
-v <variable> [value]	Mask with variable.
-t <triangulation>	Bounding triangulation. Blocks with centroids inside the triangulation will be selected. The -X option may be applied to select based on block extents.
-n <top surface>	Top bounding surface triangulation.
-u <lower surface>	Lower bounding surface triangulation.
-B <triangulation>	Use single bounding surface
-Z	Project down Z axis. Requires -B.
-O	Select blocks outside the solid only.
-bm <xl, xt, yl, yt, zl, zt>	Define the bounding extents using block model coordinates. When using this switch, you will need to specify the minimum and maximum X, Y and Z coordinates. Blocks having extents that are inside, or intersect these extents are selected.
-bw <xl, xt, yl, yt, zl, zt>	Define the bounding extents using real world coordinates. When using this switch, you will need to specify the minimum and maximum X, Y and Z coordinates. Blocks having centroids that are inside the extents are selected. The -X option may be used to reproduce the extents intersection type selection of -bm.
-s <mx, my, mz>	Sub-block dimensions.
-p <a, b, c, d>	Include planed blocks.
-C <condition>	Use conditional expression.
-r <offset>	Provide a plane offset buffer.
-X	Use proportional volumes against solid. This modifies the block selection to include blocks that intersect the selecting volume.
-T	Use selection file with triangulations.
-S	Reverse block selection

Returns

numpy.ndarray[Int64] - The indexes of the matched blocks.

Tip: It can be helpful to use this function with the get_data() function.

# Filename: bm_get_matches.py
# Purpose: Get the blocks that match the given match arguments.
# Returns: numpy.ndarray[Int64] - The indexes of the matched blocks.

from maptek import vulcan

blockmodel = 'example.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_open(), 'blockmodel is not open.'

    matches = bm.get_matches('''-C "rocktype eqs 'oxide'"''')

    data = bm.get_data('au', matches)  # get variable information
    print(data)

get_matches_extent(self, match_string) -> tuple[numpy.ndarray]

Get a list of NumPy arrays containing the block IDs and extents of each block selected in the match.

Parameters

match_string : str - The match arguments.

Returns

tuple[numpy.ndarray] - The extents of the matched blocks, in the form

tuple[[id], [Xmin], [Xmax], [Ymin], [Ymax], [Zmin], [Zmax]]

That is, a tuple of 7 NumPy arrays, where the first array is the list of IDs, the second is the list of minimum X values, etc.

Raises SyntaxError

code coming soon

get_multiple(self, fields) -> list

Get the values of a list of numeric variables.

Parameters

fields - List of numeric variables

# Filename: bm_get_multiple.py
# Purpose: Get the values of a list of numeric variables.
# Returns: List.

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model
input_vars = ['au_id', 'au_ok', 'au_nn']  # input variables

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_open(), 'f"{blockmodel} is not open."'

    # iterate through block model
    for block in bm:
        vals = bm.get_multiple(input_vars)  # get value using name
        print(f'{vals}')

get_multiple_string(self, fields) -> list

Get the values of a list of string variables.

Parameters

fields - List of string variables

# Filename: bm_get_multiple_string.py
# Purpose: Get the values of a list of string variables.
# Returns: List.

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model
input_vars = ['class', 'flag', 'geology', 'ore_zone']  # input variables

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_open(), 'f"{blockmodel} is not open."'

    # iterate through block model
    for block in bm:
        vals = bm.get_multiple_string(input_vars)  # get value using name
        print(f'{vals}')

get_pandas( self, vars=None, select=None ) -> pandas.DataFrame

Gets block model data as a pandas.DataFrame.

Parameters

vars : list[str], default = None - Variable list to get from model. Defaults to all variables if None

select : str, default = None - Selection string to use.

Returns

pandas.DataFrame

code coming soon

get_pandas_extent( self, vars=None, select=None ) -> pandas.DataFrame

Gets all matches within an extent.

Parameters

vars : list[str], default=None - Variable list to get from model. All variables if None

select : str, default=None - Selection string to use.

Returns

pandas.DataFrame - Block model within the match extent.

code coming soon

get_regular_indices(self) -> numpy.ndarray[Int64]

Get the indices of a regular block model, in i/j/k order.

Returns

numpy.ndarray[Int64] - The indices of the blocks.

Raises

TypeError if the block model is not a regular block model.

code coming soon

get_string(self, name) -> string
get_string(self, k) -> string

Get the string value of a variable, either by name or by index.

Parameters

name : str - The name of the variable to get the value of.

k : int - The index of the variable to get the value of.

Returns

String - The value of the variable.

# Filename: bm_get.py
# Purpose: Get the value of a numeric block model variable.
# Returns: Float

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model
input_var = 'au_id'  # input variable

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_open(), 'f"{blockmodel} is not open."'

    # create lists to hold values
    value_by_name = []
    value_by_index = []

    # method 1: get values using variable name
    for block in bm:  # iterate through block model
        nval = bm.get_string(input_var)  # get value using name
        value_by_name.append(nval)  # add to list

    # method 2: get values using variable index
    for block in bm:  # iterate through block model
        index = bm.get_variable_index(input_var)  # get the index of the variable
        ival = bm.get_string(index)  # get value using index
        value_by_index.append(ival)  # add to list

    # print values of each list side by side to show they are identical
    for i, (n_value, i_value) in enumerate(zip(value_by_name, value_by_index)):
        print(f'Index {i}: {i_value}   Name value: {n_value}')

get_translation_values(self, field_name) -> list

Get the translation values for a field.

This provides the mapping from the values as integers (indices) to string values. Using get_string() will translate the value for a single block to its correpsonding string, where as this function allows bulk-translation of the underlying values.

This is especially useful for large models, where calling get_data_string() may use large amounts of memory. By getting the data out as an integer rather than a string, much less memory is required.

For example, you can call get_data_int64() to load all the values then map the values it returns to the translation values for their strings.

>>> selection = bm.get_matches()

>>> var = 'region'

>>> numeric_values = bm.get_data_int64(var, selection)

>>> translation_values = bm.get_translation_values(var)

>>> print(numeric_values, translation_values)

>>> for value in numeric_values:

>>> print(translation_values[value])

Another usage would be to count the occurrence of each string without ever needing to translate the data.

>>> selection = bm.get_matches()

>>> var = 'region'

>>> translation_values = bm.get_translation_values(var)

>>> counter = collections.Counter(bm.get_data_int64(var, selection))

>>> for key, value in counter.items():

>>> print(translation_values[key], value)

Parameters

field_name : str - The field to get the translation values for.

Returns

list[str] - The translation values.

code coming soon

get_variable_index(self, name) -> int

Get the index of a variable.

Parameters

name : str - The variable to get the index of.

Returns

Integer - The index of the variable.

# Filename: bm_get_variable_index.py
# Purpose: Get the index of a variable.
# Returns: Integer.

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model
input_var = 'geology'  # input variable

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_open(), 'f"{blockmodel} is not open."'

    value = bm.get_variable_index(input_var)  # get variable index number
    print(value)  # print results

index_model(self) -> int

Build the index for the block model.

Returns

Integer - 0 if successful, 1 otherwise.

code coming soon

is_field(self, field) -> bool

Check if the given variable exists on the block model.

Parameters

field : str - The variable to check for existence.

Returns

bool - True if the variable exists, False otherwise.

# Filename: bm_is_field.py
# Purpose: Verify that the input variable exists.
# Returns: Bool.

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model
input_var = 'geology'  # input variable

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_open(), 'f"{blockmodel} is not open."'

    # verify variable exists; True = yes, False = no
    value = bm.is_field(input_var)
    print(value)  # print results

is_indexed(self) -> int

Check whether the block model is indexed.

Returns

Integer - 1 if the model is indexed, 0 otherwise.

# Filename: bm_is_indexed.py
# Purpose: Check if the model is indexed.
# Returns: '1' if yes, '0' if no.

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_open(), 'f"{blockmodel} is not open."'

    verify_index = bm.is_indexed()  # check if the block model is indexed
    print(f"{verify_index}")

is_number(self, field) -> bool

Check if the given variable exists as a numeric variable in the block model.

Parameters

field : str - The variable to check exists and is numeric.

Returns

bool - True if the variable exists and is numeric, False otherwise.

# Filename: bm_is_field.py
# Purpose: Check if variable type is numeric.
# Returns: Bool.

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model
input_var = 'geology'  # input variable

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_open(), 'f"{blockmodel} is not open."'

    # check if variable type is numeric; True = yes, False = no
    value = bm.is_number(input_var)
    print(value)  # print results

is_open(self) -> bool

Check if given block model is open.

Returns

bool - True if the variable exists and is numeric, False otherwise.

code coming soon

is_regular(self) -> bool

Check if the model is a regular model.

Returns

bool - True if the model is a regular model, False if the model is irregular.

# Filename: bm_is_regular.py
# Purpose: Check if a block model is regularised.
# Returns: Bool.

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_open(), 'f"{blockmodel} is not open."'

    # Check if a block model is regularised. True = yes, False = no
    value = bm.is_regular()
    print(value)  # print results

is_string(self, field) -> bool

Check if the given variable exists as a string variable on the block model.

Parameters

field : str - The variable to check exists is a string variable.

Returns

bool - True if the field exists and is a string field, False otherwise.

# Filename: bm_is_string.py
# Purpose: Check if variable type is string.
# Returns: Bool.

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model
input_var = 'geology'  # input variable

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_open(), 'f"{blockmodel} is not open."'

    # check if variable type is string; True = yes, False = no
    value = bm.is_string(input_var)
    print(value)  # print results

is_tb_model(self) -> bool

Check if the model is an extended format model.

Note: All new models are extended (TB) models.

Returns

bool - True if the model is an extended (TB) model, False otherwise.

# Filename: bm_is_tb_model.py
# Purpose: Check if a block model is an extended model.
# Returns: Bool.

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_open(), 'f"{blockmodel} is not open."'

    # Check if a block model is an extended model. True = yes, False = no
    value = bm.is_tb_model()
    print(value)  # print results

match_extent(self) -> list

Get the extent of the current match selection.

Returns

list[float]

code coming soon

match_volume(self) -> float

Calculates the volume of the current match selection.

Returns

float - The calculated volume.

code coming soon

model_extent(self) -> list

Returns

list[float] - In the form [Xmin, Ymin, Zmin, Xmax, Ymax, Zmax] where the min values are the coordinates of the lower extent, and the max values are the coordinates of the upper extent.

# Filename: bm_model_extent.py
# Purpose: Get the extent of the model.
# Returns: List.

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_open(), 'f"{blockmodel} is not open."'

    bm_extents = bm.model_extent()  # create list of model extents
    print(bm_extents)  # print results

model_n_schemas(self) -> int

Get the number of schemas associated with the model.

Returns

Integer - The number of schemas.

# Filename: bm_model_n_schemas.py
# Purpose: Get the number of schemas used in block model.
# Returns: Integer.

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_open(), 'f"{blockmodel} is not open."'

    bm_num_schemas = bm.model_n_schemas()  # get number of schemas used
    print(bm_num_schemas)  # print results

model_orientation(self) -> list

Get the orientation of the model.

Returns

list[float] - The amount of rotation (in degrees) for each axis, in the form [X, Y, Z]

# Filename: bm_model_orientation.py
# Purpose: Create list showing bearing, dip, and plunge of a block model.
# Returns: List.

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_open(), 'f"{blockmodel} is not open."'

    orientation = bm.model_orientation()  # get the orientation
    print(f"bearing, dip, plunge = {orientation}")

model_origin(self) -> list

Get the origin of the model.

Returns

list[float] - The origin coordinates, in the form [X, Y, Z]

# Filename: bm_model_origin.py
# Purpose: Create list of block model origin [x,y,z]
# Returns: List.

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the block model
    assert bm.is_open(), 'f"{blockmodel} is not open."'

    origin = bm.model_origin()  # get the origin
    print(f"origin x, y, z = {origin}")

model_schema_extent(self, k) -> list

Get the extent of a schema within the model.

Parameters

k : int - The index of the schema to get the extent of.

Returns

list[float] - In the form [Xmin, Ymin, Zmin, Xmax, Ymax, Zmax] where the min values are the coordinates of the lower extent, and the max values are the coordinates of the upper extent.

# Filename: bm_model_schema_extent.py
# Purpose: Create list of schema extents.
# Returns: List.

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the block model
    p_extent = bm.model_schema_extent(0)  # get the extent for parent blocks
    sub_extent = bm.model_schema_extent(1)  # get the extent for sub blocks
    print(f"parent block extent = {p_extent}")
    print(f"sub block extent = {sub_extent}")

model_schema_dimensions(self, k) -> list

Get the dimensions of a schema within the model.

Parameters

k : int - The index of the schema to get the dimensions of.

Returns

list[float] - The dimensions of the schema, in the form [X, Y, Z]

code coming soon

model_schema_size(self, k) -> list

Get the size of a schema within the model.

Parameters

k : int - The index of the schema to get the size of.

Returns

list[float] - The size of the schema, in the form

[Xmin, Ymin, Zmin, Xmax, Ymax, Zmax]

# Filename: bm_model_schema_size.py
# Purpose: Create list of schema size.
# Returns: List.

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the block model io stream
    pb_size = bm.model_schema_size(0)  # get the extent for parent blocks
    sub_size = bm.model_schema_size(1)  # get the extent for parent blocks

    print(f"list order:        [x size, y size, z size, x max, y max, z max]")
    print(f"parent block size: {pb_size}")
    print(f"sub block size:    {sub_size}")

modified_date(self) -> string

Check when the block model was last modified.

Returns

String - The date of the last modification.

# Filename: bm_modified_date.py
# Purpose: Get the most recent modification date of a block model.
# Returns: String.

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the block model io stream
    last_modified = bm.modified_date()  # get the modification date
    print(f"{last_modified}")

move_block(self, x0, y0, z0, x1, y1, z1) ->

Move the block at the current record to the given coordinates.

Note: The 'current record' is that pointed to using rewind() and next().

Parameters

x0 : float - The X coordinate for the new lower extent of the block.

y0 : float - The Y coordinate for the new lower extent of the block.

z0 : float - The Z coordinate for the new lower extent of the block.

x1 : float - The X coordinate for the new upper extent of the block.

y1 : float - The Y coordinate for the new upper extent of the block.

z1 : float - The Z coordinate for the new upper extent of the block.

Returns

Integer - 0 if successful, 1 otherwise.

Raises PermissionError if the block model is open in read only mode.

code coming soon

n_blocks(self) -> int

Get the number of blocks in the model.

Returns

Integer - The number of blocks.

# Filename: bm_n_blocks.py
# Purpose: Get the number of blocks in a block model.
# Returns: Integer.

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open the block model io stream
    num_blocks = bm.n_blocks()  # get the number of blocks
    print(f"{num_blocks}")

pop_select(self) ->

code coming soon

put(self, *args) ->

code coming soon

put_data( self, var, data, sel=None) ->

code coming soon

put_data_double(self, name, n1, n0) ->

code coming soon

put_data_float(self, name, n1, n0) ->

code coming soon

put_data_string(self, var, data, sel=None) ->

code coming soon

put_data_string_list(self, name, data, n0) ->

code coming soon

put_grid( self, var, data) ->
put_grid(self, name, data) ->

code coming soon

put_pandas( self, dataframe, vars=None ) ->

code coming soon

put_string(self, *args) ->

code coming soon

rotate(self, x, y, z) ->

code coming soon

scale(self, x, y, z) ->

code coming soon

select(self, selection) -> int

Specify block selection criteria for a block model.

Each instance of using this function will overwrite any previous selection on the same level.

Parameters

selection : str

The selection criteria string.

Options	Descriptions
-v <variable> [value]	Mask with variable.
-t <triangulation>	Bounding triangulation. Blocks with centroids inside the triangulation will be selected. The -X option may be applied to select based on block extents.
-n <top surface>	Top bounding surface triangulation.
-u <lower surface>	Lower bounding surface triangulation.
-B <triangulation>	Use single bounding surface
-Z	Project down Z axis. Requires -B.
-O	Select blocks outside the solid only.
-bm <xl, xt, yl, yt, zl, zt>	Define the bounding extents using block model coordinates. When using this switch, you will need to specify the minimum and maximum X, Y and Z coordinates. Blocks having extents that are inside, or intersect these extents are selected.
-bw <xl, xt, yl, yt, zl, zt>	Define the bounding extents using real world coordinates. When using this switch, you will need to specify the minimum and maximum X, Y and Z coordinates. Blocks having centroids that are inside the extents are selected. The -X option may be used to reproduce the extents intersection type selection of -bm.
-s <mx, my, mz>	Sub-block dimensions.
-p <a, b, c, d>	Include planed blocks.
-C <condition>	Use conditional expression.
-r <offset>	Provide a plane offset buffer.
-X	Use proportional volumes against solid. This modifies the block selection to include blocks that intersect the selecting volume.
-T	Use selection file with triangulations.
-S	Reverse block selection

Returns

Integer - 0 if successful, 1 otherwise.

# Filename: bm_select.py
# Purpose: Specify block selection criteria for a block model.
# Returns: Integer (0 if successful, 1 otherwise.)

from maptek import vulcan

blockmodel = 'demo_vein.bmf'  # input block model
input_var = 'flag'  # use this variable

# open the block model
with vulcan.block_model(blockmodel) as bm:
    assert bm.is_open(), 'f"{blockmodel} is not open."'

    # select all blocks within vein solid
    bm.select('-t TQ1.00t')  # select initial solid

    for block in bm:  # iterate through selected blocks
        bm.put(input_var, 'ore')  # flag as ore

select_xy_seam(self, x, y, seam) ->

code coming soon

set_model_orientation(self, a1, a2, a3) ->

code coming soon

set_model_origin(self, x0, y0, z0) ->

code coming soon

to_model(self, *args) ->

to_model(self, x, y, z) -> double_list

to_model(self, p) -> Point_type

Convert a set of real world coordinates to model coordinates.

Parameters

x - The X coordinate to convert as float.

y - The Y coordinate to convert as float.

z - The Z coordinate to convert as float.

p - point object.

Returns

list[float] - The converted coordinates, in the form [X, Y, Z].

# Filename: bm_to_model.py
# Purpose: Convert a set of real world coordinates to model coordinates.
# Returns: list[float] The converted coordinates in the form [X, Y, Z].

from maptek import vulcan

blockmodel = 'example.bmf'  # input block model

with vulcan.block_model(blockmodel) as bm:  # open block model
    mod_coords = bm.to_model(77920.0, 4370.0, 0.0)  # get model coordinates
    print(mod_coords)

to_world(self, *args) ->

code coming soon

translate(self, x, y, z) ->

code coming soon

write(self) ->

code coming soon
