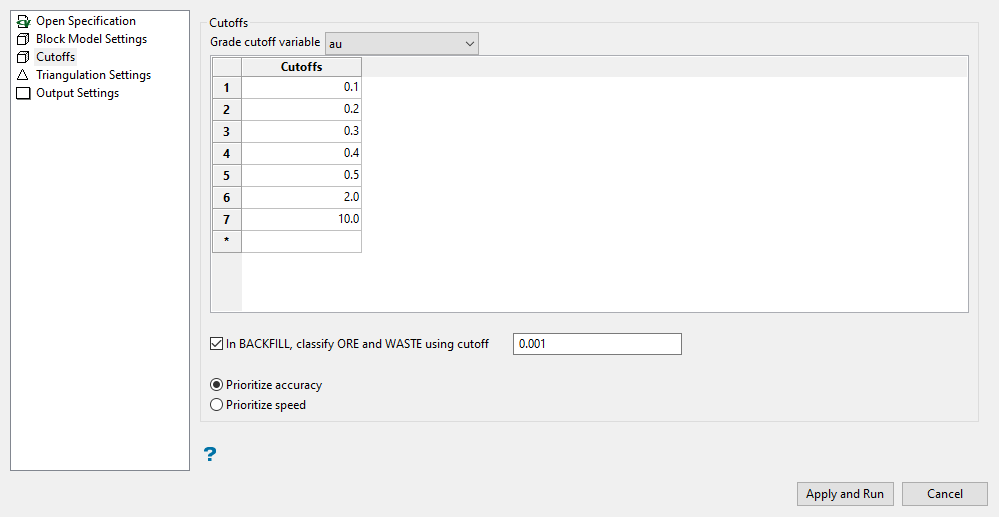

Cutoffs
Use the Cutoffs option to apply cutoff values to selected grade variables.
Cutoffs
Grade cutoff variable
Select the grade variable to be applied to the specified cutoffs.
Cutoffs
Enter the cutoff values for the selected grade variable.
The panel utilises grid controls to manage the grid information, i.e. right-click context menus, that allow you to perform options such as hiding columns, cutting, copying, and pasting cells, and inserting and deleting rows. Right-click in the grid area to display the context menu. Descriptions of the available options are listed below.
Grid Control Options
-
Use the Select Columns option to choose which grid columns to display in the panel, and optionally save the selection to a template for future use. Alternatively, select cells and click Hide Columns to hide the respective columns directly.
-
Select cells and use the Cut, Copy, and Paste options to duplicate or move cell entries.
-
Select a cell in a row of interest and use the various insert and delete row options to manage the records in the grid.
-
Click Clear Cells to clear the contents of a selection.
In BACKFILL
Select this check box to save the cubic reserves block model that is generated during the process.
Prioritize accuracy
This algorithm uses the blocks exact volume of the intersection between a block and triangulation rather than the entire volume.
Prioritize speed
This algorithm uses the blocks entire volume rather than the exact volume of the intersection between a block and triangulation.
