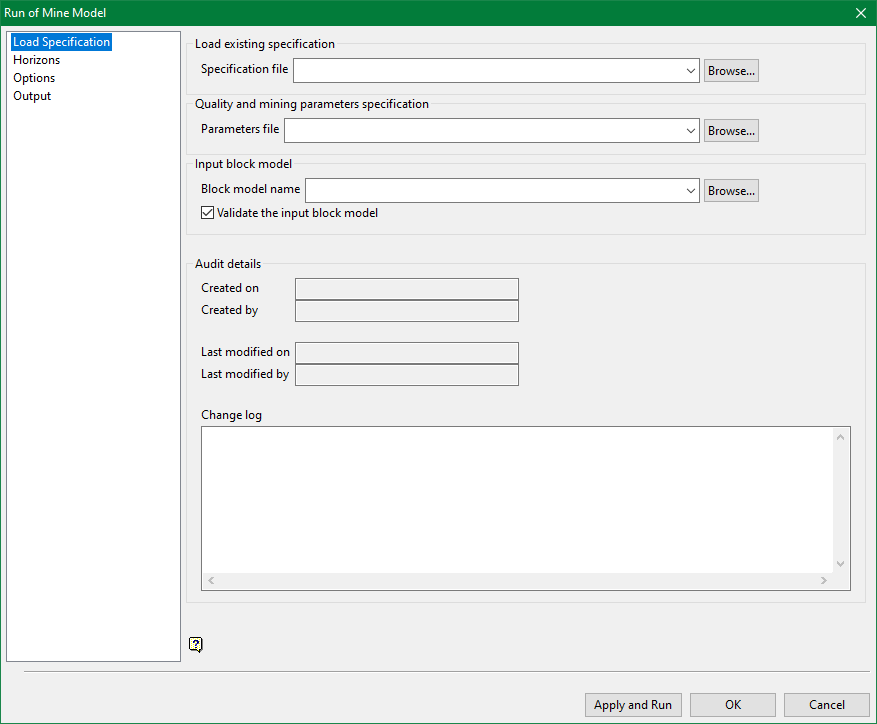

Load Specifications
Load existing specification
If available, select an existing Run of Mine Specification file from the drop down list. Click Browse to select a specification file from a location other than the current working directory. Run of mine specification files have a .rom_model extension. If a specification file does not exist, panel configurations can be saved in the Output subpanel. See Output.
Quality and mining parameters specification
Select the optional *.rom_parameters specification file which will be used to incorporate quality and mining parameters into the output. The *.rom_parameters specification file is created via Grid Calc > Integrated Stratigraphic Modelling > Quality and Mining Parameters.
This specification must have been created from a HARP model with the same variables and horizons as the model input in the Run of Mine panel.
Input block model
Select the stratigraphic block model which will be used to create the run of mine model. It is recommended that only HARP style block models created using Grid Calc > Integrated Stratigraphic Modelling > Create HARP Model are used. By selecting the check box, users can quickly validate to ensure it is a HARP or stratigraphic block model.
Audit details and Change Log
Audit details are automatically populated when the specification is created. The details will update each time the specification is run. Enter pertinent details of a particular specification run in the Change Log area. Entries are saved in the specification file for auditing purposes.
