Triangulations
This section allows users to select the triangulation data that will be incorporated into the resulting fault surface.

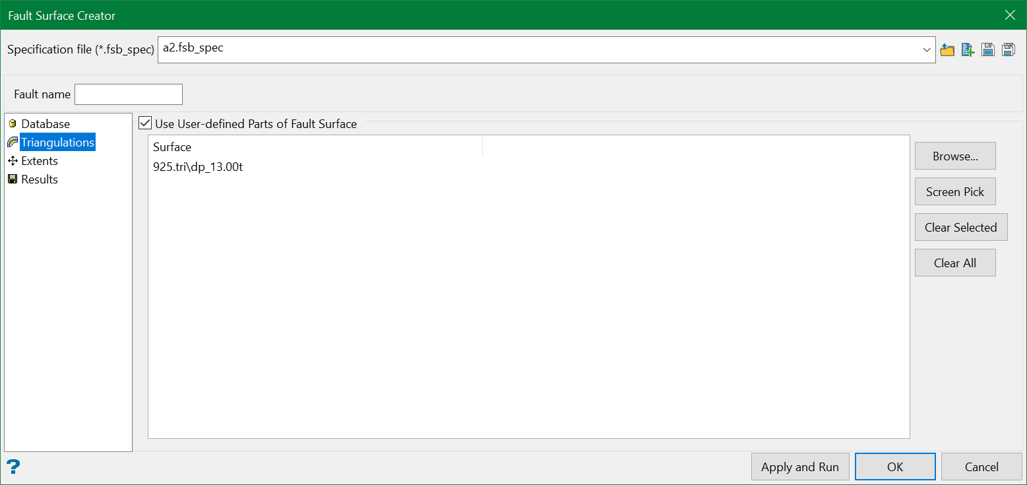

Use User-defined Parts of Fault Surface
This option enables the panel and allows users to select or remove the triangulations.
The buttons on the right allows different ways that triangulation can be selected into or removed from the list. You can either browse to a directory or pick triangulation from the screen.
Currently only triangulation points are used for modelling the resulting fault surface i.e. the resulting surface re-triangulates those points and the final surface may appear different.
For example, the triangulation piece (in Figure 1) may appear different in the triangulated final surface (Figure 2).

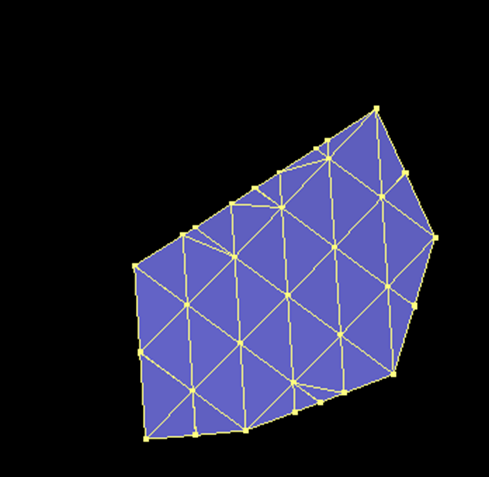

Figure 1: Triangulation piece before re-triangulation

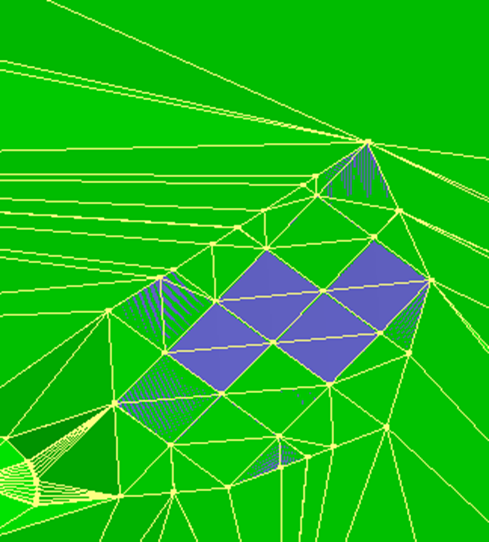

Figure 2: The final surface after re-triangulation
