Extents
This section allows users to define the limit of the fault surface. There are multiple ways of selecting extents.
Users can enter the numbers manually, digitise XY extents from the screen, get Z limits from a drillhole database, or get the extents from any triangulation. The triangulation option has in account the solid that potentially will be cut by the resulting fault surface using Fault Solid Creator tool.

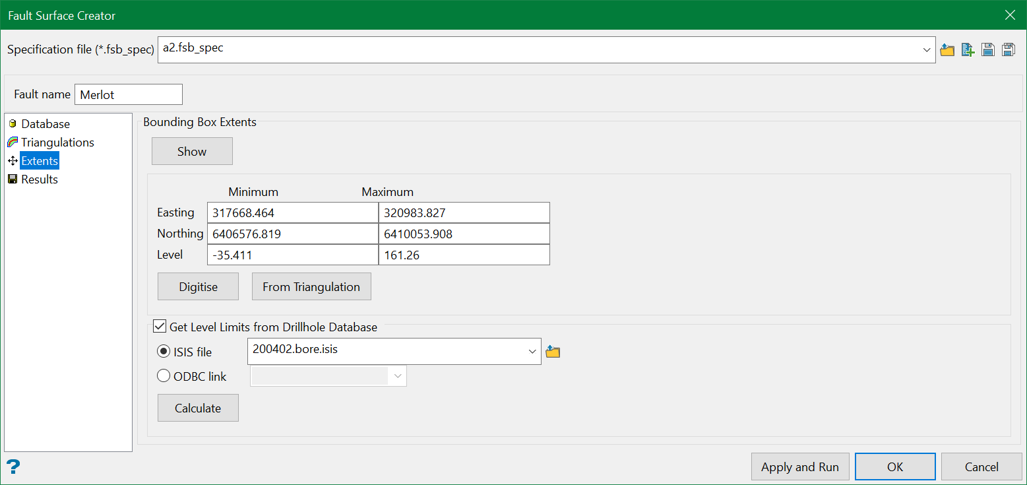

Bounding Box Extents
This option allows selecting bounding box extent to the fault surface.

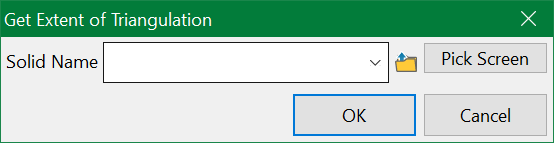

Users can manually enter the coordinates and levels for the bounding box extent, choose from the screen using the Digitise button, or get extents from any triangulation using the From Triangulation option.
Show
This button minimises the panel and displays the extents on a red bounding box on the screen.
Get Level limits from Drillhole Database
Select this option to extract levels from a drillhole database. Select the desired database and use the Calculate button to autofill the level limits from that database.
