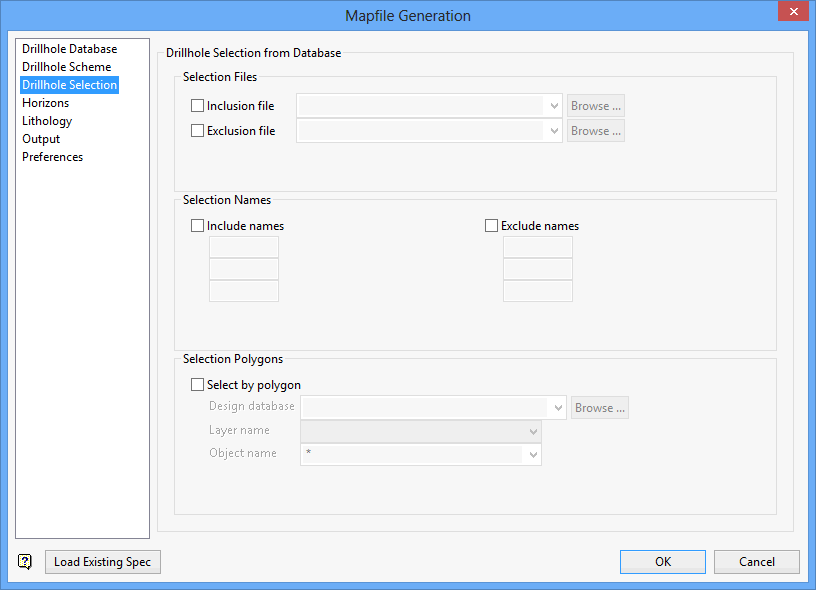

Drillhole Selection

Drillholes can either be limited by name or by position. If none of the options in this section are selected, then all available drillholes will be used. Entries in the nominated drillhole selection files (.sel), as well as the drop-down lists, may contain wildcards (both * multiple and ? single character).

Tip

You can create a drillhole selection file by selecting drillholes of interest, then right-click and select Drillhole > Selection File from the context menu to enter a file name and save the .sel file for future use. This essentially creates a text file that contains a list of hole identifiers with the format shown below. You can also create a selection file manually using a text editor and saving the file with the .sel extension. Note that drillhole names in the selection file are case sensitive.

Drillhole selection file format:

DD00026
DD00035
DD00044
DD00053
DD00116
DD00143

The following selection methods may be used in combination.

Selection Files

Inclusion File

Select this check box to limit the drillhole selection to only those holes that are contained in the nominated Drillhole Selection file (.sel).The drop-down list contains all .sel files found in your current working directory. Click Browse to select a file from another location.

Exclusion File

Select this check box to limit the drillhole selection to only those holes that are not contained in the nominated Drillhole Selection file (.sel).The drop-down list contains all .sel files found in your current working directory. Click Browse to select a file from another location.

Selection Names

Include names

Select this check box to limit the drillhole selection to only those holes that match a specified pattern. Wildcards (both * multiple and ? single character) can be used.

Exclude names

Select this check box to limit the drillhole selection to only those holes that do not match a specified pattern. Wildcards (both * multiple and ? single character) can be used.

Selection Polygons

Select by polygon

Select this check box to limit the drillhole selection to only those holes that fall in a nominated polygon.

Design database

Specify the name of the design database that contains the layer and polygon object.The drop-down list contains all .dgd.isis files found in the current working directory. Click Browse to select a file from another location.

Layer name

Specify the name of the layer that contains the polygon object.The drop-down list contains the names of all layers found in the currently open design database. If you select an existing layer, then the resulting data will be appended to the nominated layer. If you enter the name of an existing layer that is not currently loaded, then you will need to confirm whether you want to load the layer or replace it, that is, overwrite its contents.

To create a new layer, enter the layer name.Layer names must begin with an alphabetic [ a - z ] or numeric [ 0 - 9 ] character and may contain up to 40 alphanumeric characters. Hyphens [ - ], plus signs [ + ], underscores [ _ ], periods/dots [. ] and the special characters of ÁÂÃÀÇÉÊÍÓÔÕÚÜÑ that are used in the Spanish and Portuguese languages may also be used. Spaces are not allowed.

Object name

Enter the name of the polygon object that will be used to limit the drillholes. Wildcards (both * multiple and ? single character) can be used.
