Sheet

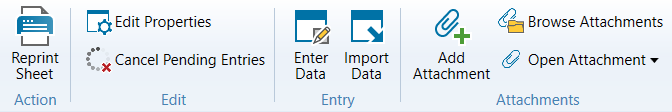

The Sheet context sensitive ribbon contains tools specifically related to sheets.

Action

Reprint Sheet

Select the Reprint Sheet tool to re-open the selected sheet in the view window. You can then reprint the sheet from the view window.

Edit

Edit Properties

You can edit the properties of a sheet by:

  1. Clicking the sheet in the data explorer.

  2. Going to Sheet > Edit > Edit Properties.

The properties that are available to edit will depend on the type of sheet (dip, backfill, charge or survey) you are editing. In general, there are three categories of sheet properties: PDF properties, Sheet options which display the options that are available on the tablet but can me modified on the desktop, and Tablet properties which are shown on the tablet.

Here is a list of PDF properties and an explanation of each:

  • Show last known depth column — Check this checkbox if you want to display the last known depth column.

  • Show water column — Check this checkbox if you want to display the water column.

  • Show wet-sides column — Check this checkbox if you want to display the wet-sides column.

Here is a list of Sheet Options:

  • Show temperature column — Check this checkbox if you want to display the temperature column on the tablet.

  • Crew check percentage — Enter the percentage of rows you would like to be checked by the crew. These rows will have a checkbox next to them to indicate if the data has been checked by the crew.

  • Supervisor check dip percentage — Enter the percentage of rows you would like to be checked by the supervisor. These rows will have a checkbox next to them. These rows will have a checkbox next to them to indicate if the data has been checked by the supervisor.

Here is a list of Tablet properties:

  • Show target drill depth

  • Show target charge depth

Cancel pending entries

To cancel the pending entries of a sheet, follow these steps:

  1. On the Sheet context sensitive ribbon, in the Edit group, select the Cancel Pending Entries. The Abandon <sheet name> panel will appear.

  2. Review the panel information.

  3. Click OK to abandon the sheet.

Entry

Enter Data

For information on entering drilling data, see Drill Data Entry.

For information on entering survey data, see Survey Data Entry.

For information on entering dip data, see Dip Data Entry.

For information on entering backfill data, see Backfill Data Entry.

For information on entering charge data, see Charge Data Entry.

Import Data

For information on importing data, see Import.

Attachments

Add attachment

For information on the Add Attachment tool, see the Add attachment section on the attachment page.

Browse attachments

For information on the Browse Attachments tool, see the Browse attachments section on the attachment page

Open Attachment

The Open Attachment tool allows you to view and open attachments associated with the selected sheet. Select the tool drop-down to view the attachments and select the desired attachment to open it in a new view window.
