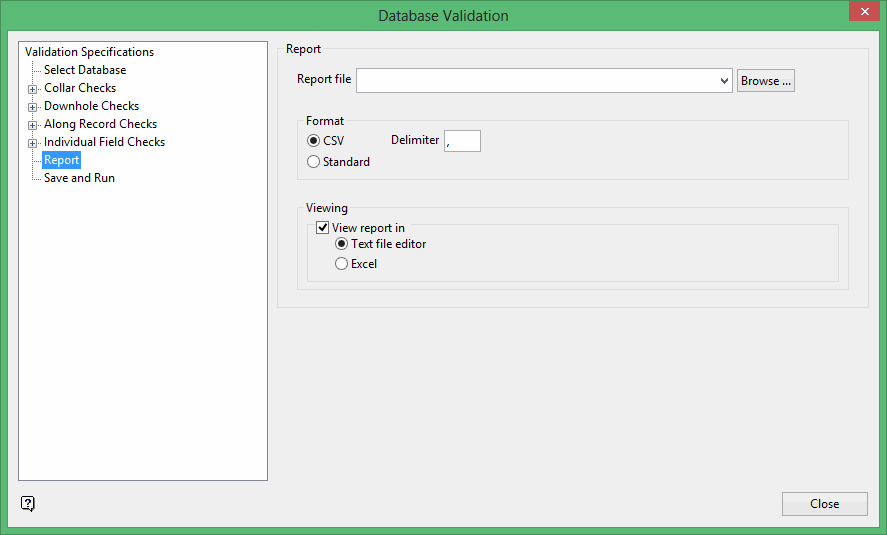

Report

Report file

Enter the name of the file that will be used to store the error results from the validation. The drop-down list contains all .csv and.txt files found in your current working directory. Click Browse to select a file from another location.

To create a new file, enter the file name and file extension.

Format

Use this section to specify that format of the resulting validation report file. The resulting file can either be saved as a CSV formatted file (.csv) or as a standard ASCII formatted text file (.txt). When saving the report as a CSV formatted file, you will need to specify a delimiter, that is, the character that will be used to separate the values in the resulting file. A single comma (,) will be used by default.

Viewing

Use this section to specify how the report file is to be viewed once it has been generated. The report file can be viewed through a text editor or through Microsoft Excel.

In order to automatically view the generated file on completion, you will need to select the View report in check box and select the viewer that you want to use. If this check box is not selected, then the resulting report file will be stored in the specified storage location and you will need to manually launch the generated file.

---
