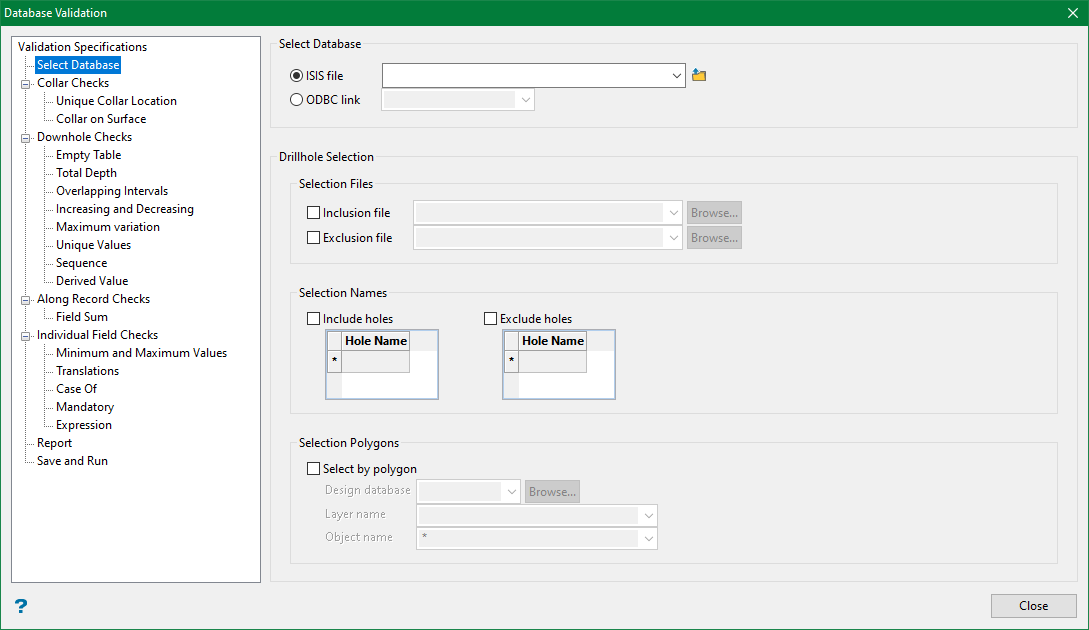

Select Database

Isis File

Select ISIS File to choose an existing Isis database. Click Browse to navigate to a database which does not exist in the current work area.

ODBC Link

Click ODBC Link to select an existing design for a database which is linked to a third-party database system.

Drillhole Selection

This section allows to include or exclude certain holes from the validation process.

A number of selection options are available, which may be used in conjunction with each other if required.

Selection Files

If a large number of drillholes need to be included or excluded, then it is advisable to create a selection file (.sel) consisting of the drillhole names.

Tip

You can create a drillhole selection file by selecting drillholes of interest, then right-click and select Drillhole > Selection File from the context menu to enter a file name and save the .sel file for future use. This essentially creates a text file that contains a list of hole identifiers with the format shown below. You can also create a selection file manually using a text editor and saving the file with the .sel extension. Note that drillhole names in the selection file are case sensitive.

Drillhole selection file format:

DD00026
DD00035
DD00044
DD00053
DD00116
DD00143

Selection Names

If fewer drillholes need to be included or excluded, the hole names may be entered directly in the respective grids. The drillholes identified are saved in the specification file for use in later runs.

Note: Drillhole names entered in the grid are case-sensitive.

Select by Polygon

Select this option to nominate a pre-existing polygon which will spatially include the drill holes.

Note: Select polygons are inclusive.
