Selected optional accessories includes a selection of accessories to use with Maptek scanners. To learn more about these and other accessories, visit Maptek online or contact your nearest Maptek office.
Table E-1 Selected optional accessories
|

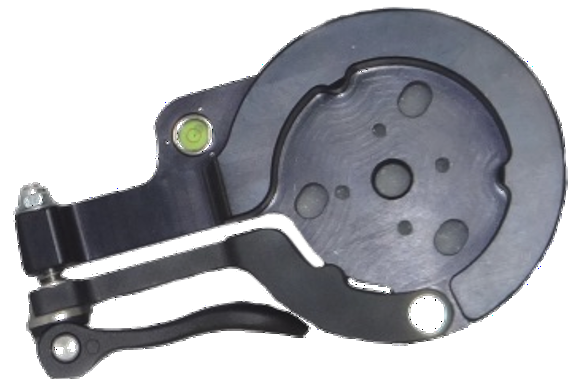

Tribrach adapter clamp
|
An alternative method of mounting the scanner onto a tripod or bollard using a 5/8″, 11 TPI fixing bolt. |
(Standard kit)
0102230
(Sentry kit)
0102235
|
|

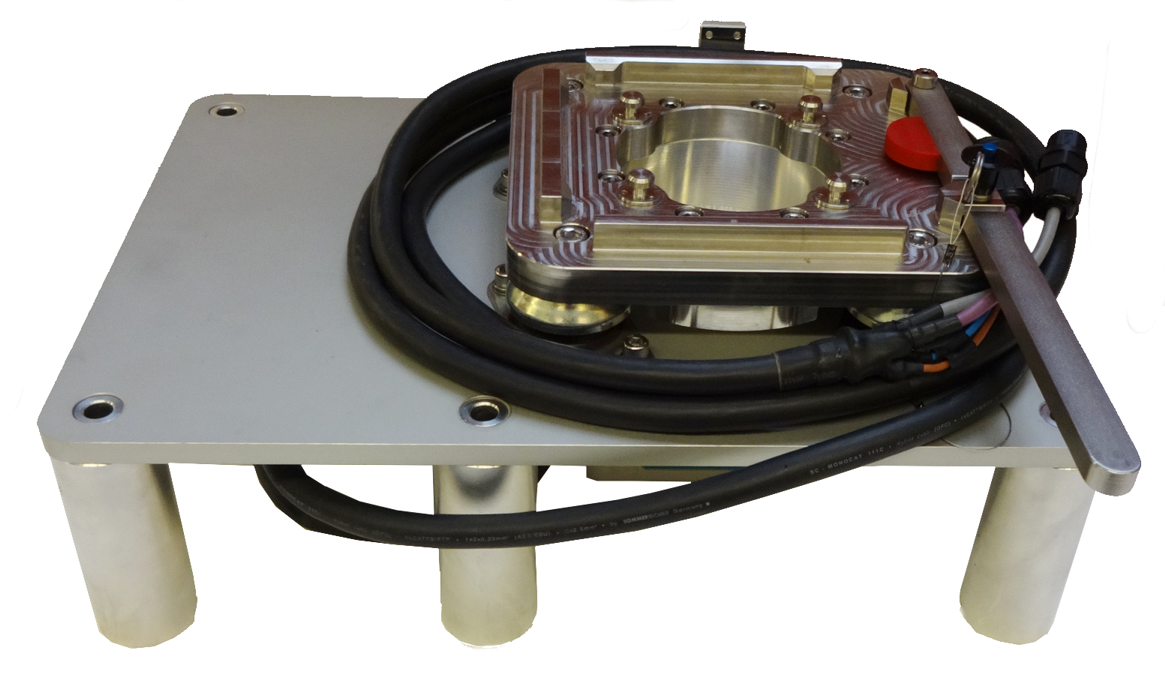

Vehicle mount
|
Vehicle mount adapts the scanner for use on a vehicle roof. It is used for stop-and-go scanning. |
0102521 |
|

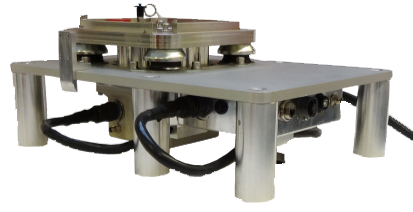

Drive mount
|
Drive enhances mobile scanning by adding a radio and µIMU, providing precision geolocation data for static scanning and enabling scanning while driving. |
0102522 |
|

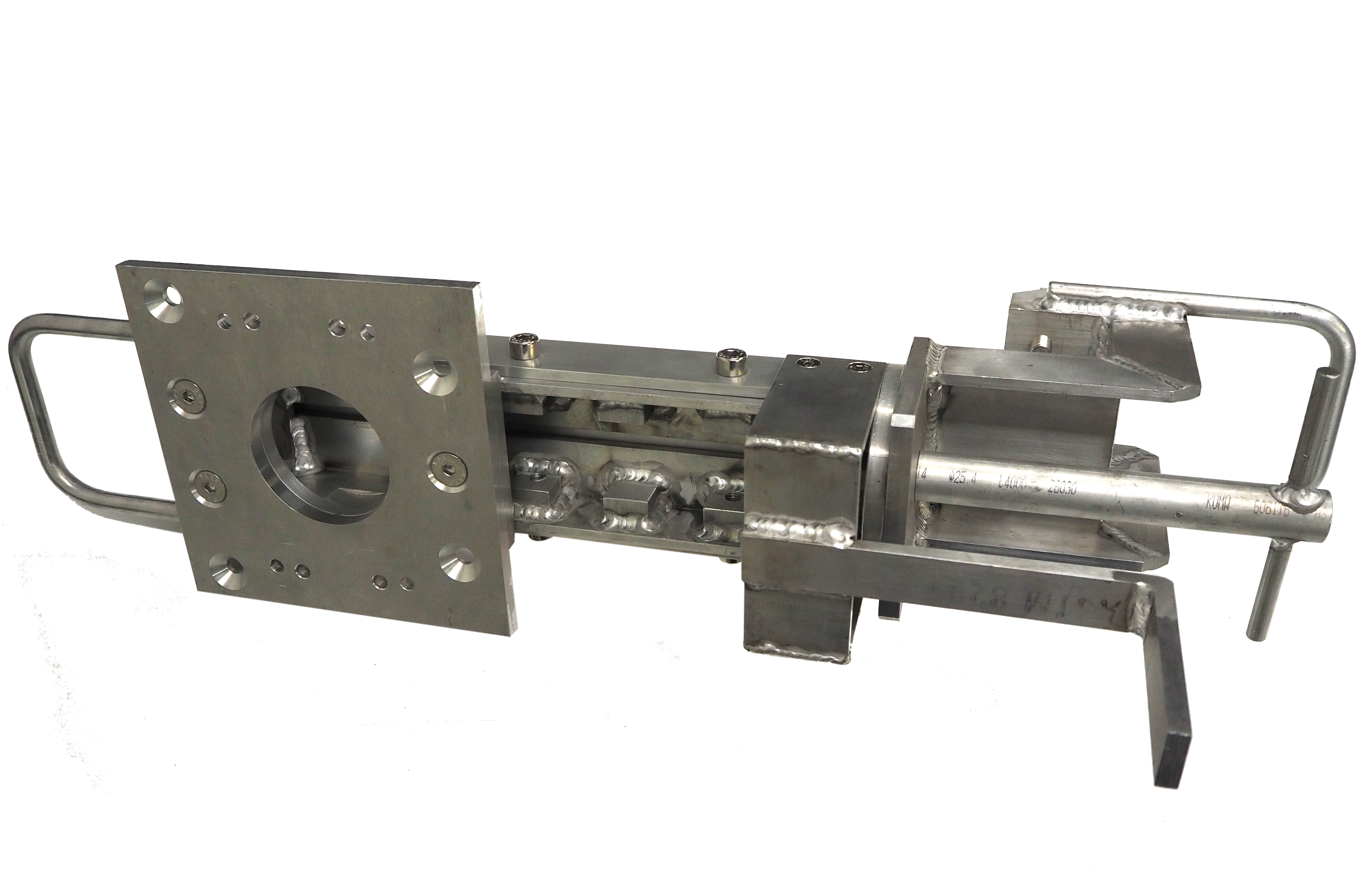

Stair rail bracket
|
The stair rail bracket allows a scanner to be suspended horizontally over gantries or rails to permit stockpile scanning from an elevated position. |
0102027 |
|

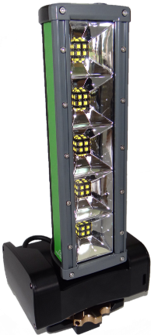

Underground light
|
The underground light attaches the SR3 scanner’s GPS adaptor mount and provides a shaped beam that enhances light exposure for photographic imaging. |
0103000 |
