Drill Measurements
Source file: drill-measurements.htm

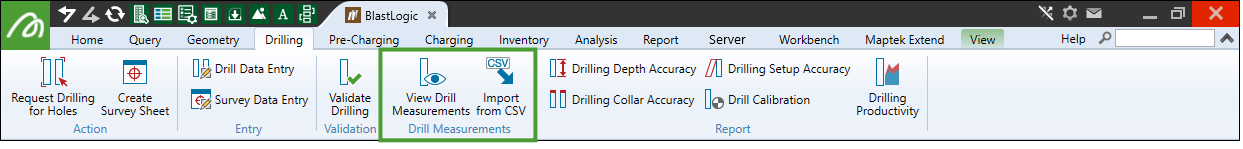

The Drill Measurements group on the Drilling tab contains tools that allow you to import and view drill measurements.
View Drill Measurements
Use the
View Drill Measurements tool to view the drill properties of selected holes, as follows:
-
Select the required holes in the view window.
-
On the Drilling tab, in the Drill Measurements group, select
View Drill Measurements.
The Hole Properties panel, which displays the Drill measurements tab, will appear. This tab presents the drill measurement properties defined in the Drill measurements tab (Home tab > Setup group >
Site). Note: For more information on the Hole Properties panel, see the Hole Properties section of the Hole topic.
Import from CSV
For information on importing drilling data from a CSV file, see Importing a CSV file.
