Geometry Tab Overview

Source file: geometry-tab.htm

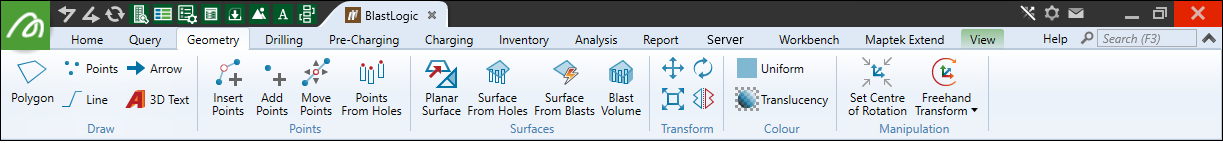

You can find the following tool groups in the Geometry tab menu:

• Draw: Contains tools that allow you to create shapes and text.

• Points: Contains tools that allow you to insert, add, and move points, as well as a tool to generate a points object from holes.

• Surfaces:  Contains tools that allow you to generate surfaces from different data sources

• Transform: Contains tools that allow you to shift, rotate, scale and create mirror images of the objects in your view.

• Colour: Contains tools that allow you to apply colours and set translucency to the objects in your view

• Manipulation: Contains tools that allow you to set the centre of rotation and translate or rotate an object using the mouse.
