Annotations

The Annotations tab only appears if a marker has been created and selected.

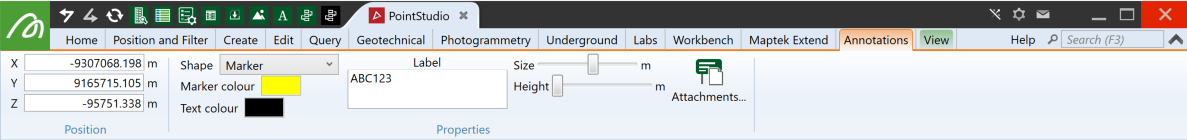

From the Annotation tab, you can edit the position and properties of a selected marker, and attach files, as follows:

Position	Enter new coordinates or select a coordinate field, then pick the new location in the view window.
Shape	Select a new shape from the drop-down list.
Marker colour	Select a new colour from the swatch.
Text colour	Select a new colour from the swatch.
Label	Enter new label text.
Size	Drag the slider to change the marker size.
Height	Drag the slider to change the marker elevation.
Attachments...	Click to add attachments to the marker. See Properties > View and edit marker attachments.
