Underground Tab Overview

Note:  Underground is an add-on that requires additional licensing, which may be obtained via your Maptek Account portal. Please see Licensing Applications in Workbench help for details.

The Underground tab provides tools for modelling tunnels and other cavities.

Tip:  For best results only use these tools after cleaning up input data to remove inconsistencies using filtering tools on the Position and Filter tab.

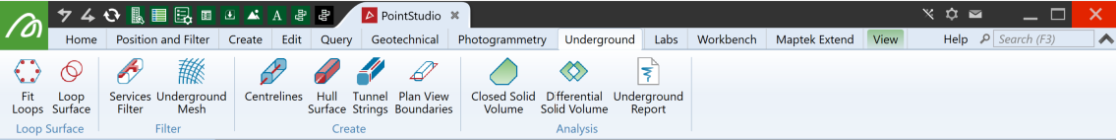

You can find the following tool groups in the Underground ribbon tab:
