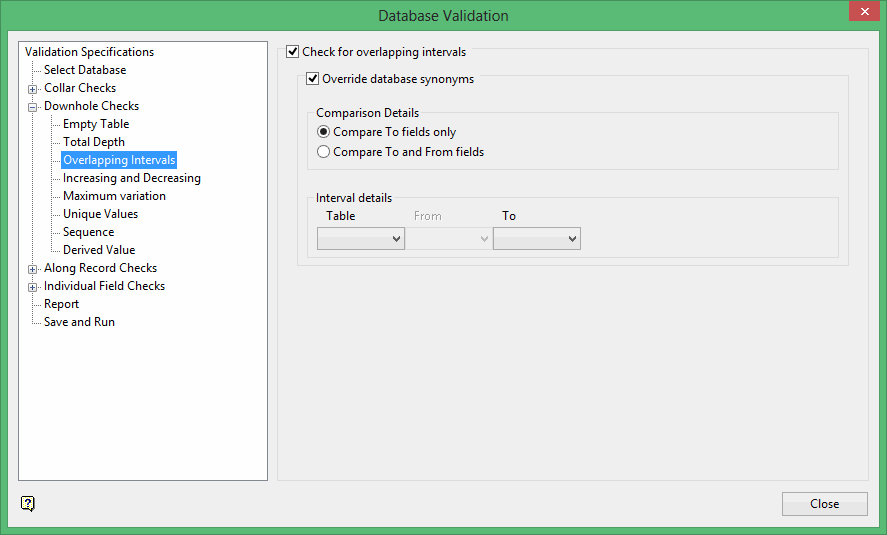

Overlapping Intervals
Check for overlapping intervals
Select this check box to compare intervals down a hole to ensure they do not overlap, for example, 1->2, 1.5->3 overlap, whereas 1->2, 2->3 do not.
Override database synonyms
Select this check box to specify whether to compare only the To or both the To and From fields, and also which database table and fields (columns) to use in the overlapping intervals check.
Interval details
Select the Table, From and To fields to use when checking for overlapping intervals.
