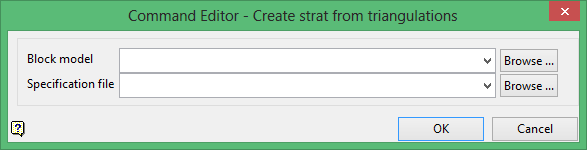

Create strat from triangulations

Use the Create strat from triangulations command to create a stratigraphic block model using nominated triangulations. In order to create the resulting block model, this command will use the parameters defined in an existing Bstrat2 specification file (.bstrat2_spec). Bstrat2 specification files can be created through using the Create Stratigraphic Solid option (under the Block > Construction submenu).

Block model

Enter the name of the resulting block model file. Selecting an existing file will prompt you to confirm that you want to overwrite the file's original contents.

The drop-down list contains all block models found within the current working directory. Click Browse to select a file from another location.

Specification file

Enter the name of the Bstrat2 specification file (.bstrat2_spec) that you want to use. The drop-down list contains all .bstrat2_spec files found in your current working directory. Click Browse to select a file from another location.

Click OK to add the command and return to the Command Editor panel.
