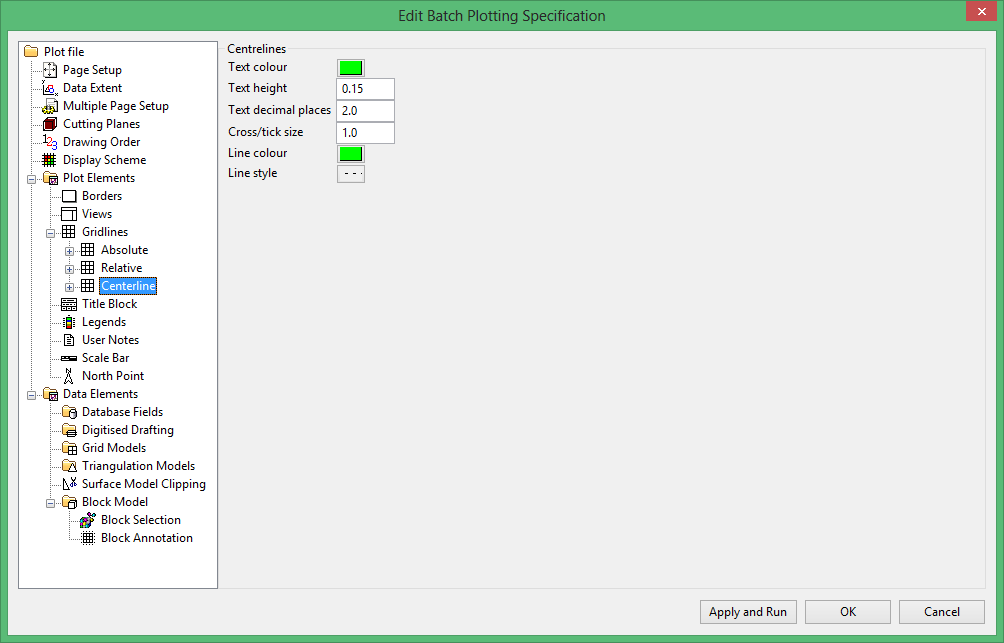

Centreline
Use this section to set the graphical attributes of the gridlines and annotations.
Note: Â Each view will only have one centreline.
Text colour
Select the colour for the centrelines annotations.
Text height
Enter the height, in plotter units, of the annotations.
Text decimal places
Enter the number of decimal places for the annotations.
Cross/check size
Enter the size, in plotter units, of the check marks on the centreline.
Line colour
Select the colour for the centrelines.
Line style
Select the line style for the centreline.
