Feature Structures
Allows the quick digitising of structural lines using predetermined Features.
Instructions
On the Face Mapper menu, point to Mapping, then click Feature Structures.
The Features that get populated from this panel are read from the Structures tab of the Create Feature Files tool.Â

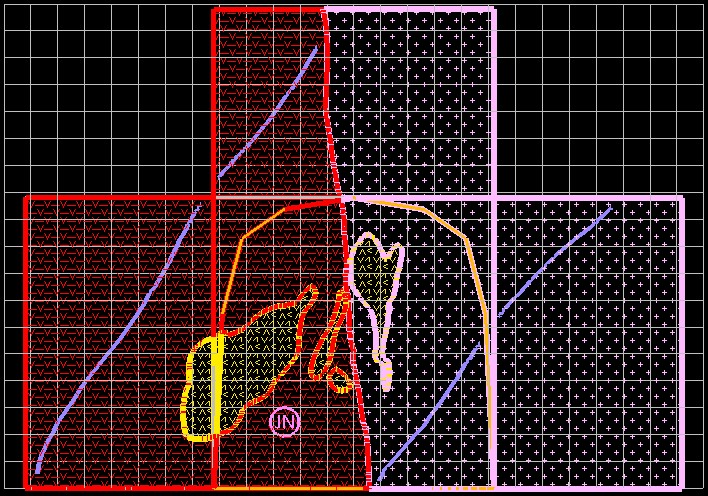

Select the feature (structure code) to digitise then digitise the line as desired. When satisfied with the line, right-click to finish digitising that object. After digitising, the line will be split based on the template and bounding boxes to create separate line objects in the face, walls and backs. The Feature selection panel will be persistent until Cancel is selected.
