English Log Generation - Footer Tables

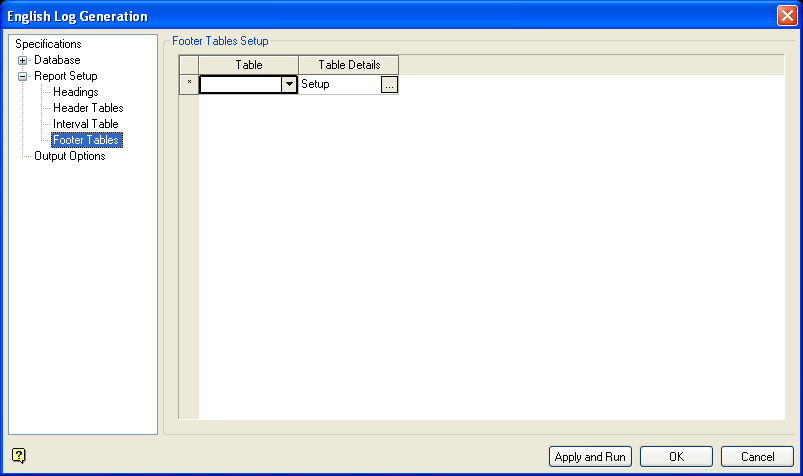

Footer Tables Setup

This section allows you to configure the reporting of general footer information, i.e. hole completion details, total depth reached or subsequent geophysical logs run. Depending on the structure of the drilling database, there may be more than one table selected. Within each selected table there are a number of inputs required.

Table

Select the table to be used.

Table Details

Select the button to configure the table reporting. Once selected, the Setup Table Reporting panel displays.
