Open Generated Models Group

Use this option to open the generated washability group-model files.

Instructions

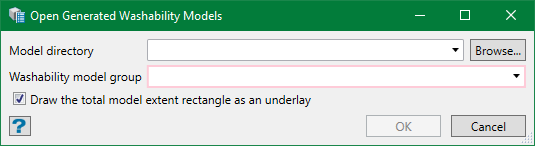

On the Washability menu, click Open Generated Models Group to display the following panel.

Model directory

Specify the directory used for storing the generated models. If no directory is specified, the models will be selected from the current project directory.

Washability model group

The washability group model file indicates the collection of individual models which comprise all of those generated. Typically, this will have the same root name as the generation specifications.

Draw the total model extent rectangle as an underlay

Select this checkbox to draw rectangle for the washability model extents. This will be the union of all individual model extents.
