Import Minex Triangulations
Instructions

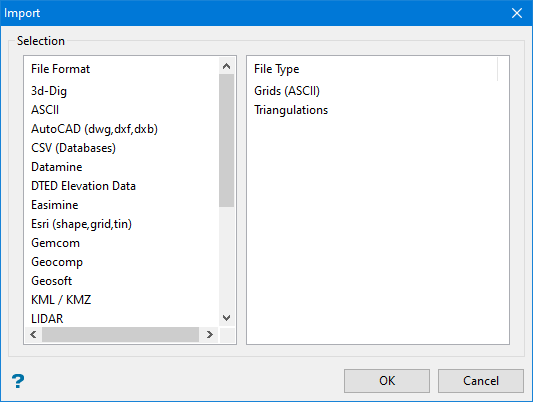

On the File menu, click Import to display the Import panel.
Click Minex in the File Format column on the left.
Select Triangulations from the File Type field on the right side of the panel.
Click OK to display the Import Minex Triangulation panel.
There are two types:
Importing a single triangulation
Select this option to import a single Minex triangulation. Unlike the Multiple option, this option will allow you to specify the name and storage location for the resulting Vulcan triangulation.
Importing multiple triangulations
Select this option to import more than one Minex triangulation. The resulting Vulcan triangulations will be stored in the same directory as the original Minex files. The triangulations will also inherit the names of the selected Minex files but with an extension of.00t added to end of the file name.
All import triangulations use the default triangulation folder set in preferences, unless you have defined an alternate path.

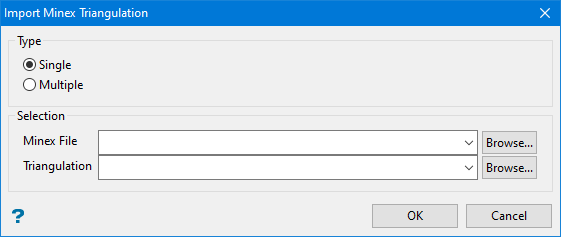

Importing a single triangulation
Minex File
Select the Minex file that you want to convert into a Vulcan triangulation. The drop-down list contains all .dmp files found in the current working directory. Click Browse to select a file from another location.
Triangulation
Select the triangulation that will be used store the imported data. The list contains all triangulations in the current working directory. Click Browse to select a file from another location. Nominating an existing file will require you to confirm whether or not you want to overwrite the original information.
To create a new file, enter the file name and file extension.

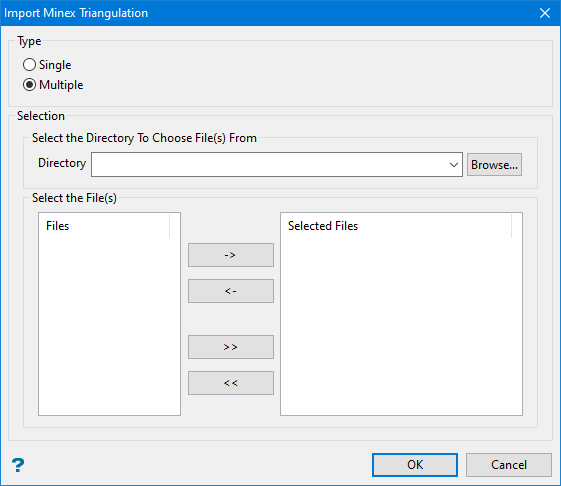

Importing multiple triangulations
Select the Minex files (.dmp) that you want to import.
- Click the -> button to move the highlighted file(s) to the selection list on the right.
- Click the >> button to move all files to the selection list.
- To highlight multiple files that are adjacent in the list, hold down the Shift key while you click on the first and last file names in the list.
- To highlight multiple non-adjacent files, hold down the Ctrl key while you click on the file names.
- To remove files from the selection list, highlight the file name(s) and click the < button or click the << button to remove all files from the selection list.
