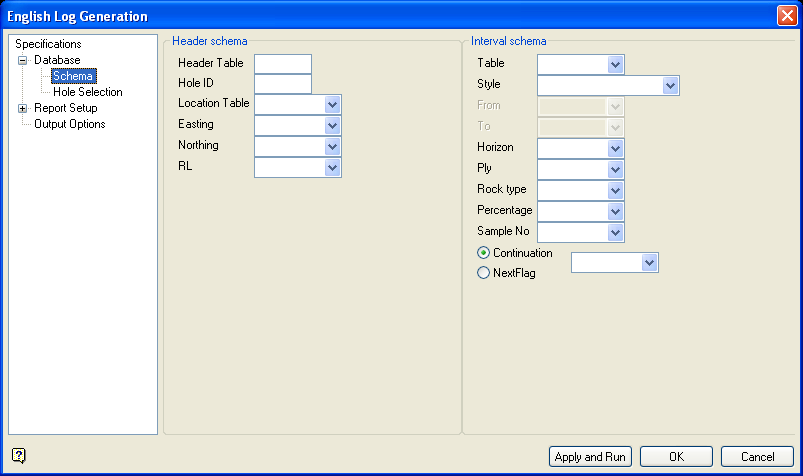

English Log Generation - Schema

Header schema

Select the tables and fields defining the holes to be used. By default, the synonyms will be loaded up onto this panel from the selected structural database. You can then edit the schema to use different tables or fields.

Missing entries here can affect other parts of the specification for example if you don't define a sample number field, then you can't use sample number as a lookup method into the analytical data.

Interval schema

Select the tables and fields defining the interval schema which will be used to identify the structure. It will be pre-populated according to the column synonyms.
