Flag by Triangulation

Use the Flag by Triangulation command to flag block models based on the location of each block centroid sand a set of surface or solid triangulations.

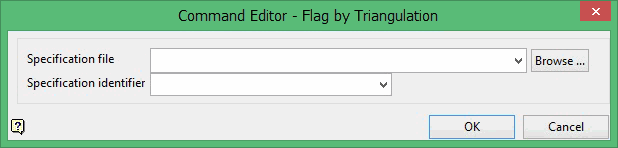

Specification file

Enter the name of the block definition file (.bfl.spec) that contains the details for the name of the block model, triangulations, and variables being assigned.

The drop-down list contains all .bfl.spec files found in the current working directory. Click Browse to select a file from another location.

Specification identifier

The specification file can have multiple specs within it. Use the Specification identifier to select the desired spec file to use. Upper and lower case identifiers are accepted.

Click OK to add the command and return to the Command Editor panel.
