Rename Blocks by Ramp Distance
Use this option as a post process of the generated blocks (ramps, trims and production). The process changes the sequence number of the block name (trim and production) according to the distance from the ramp or the nearest ramp (when you have more than one). It also writes the distance attribute with the distance value in the block.
Instructions
On the Open Pit menu, point to Schedule Solids, then click Mining Blocks Rename Blocks by Ramp Distance.

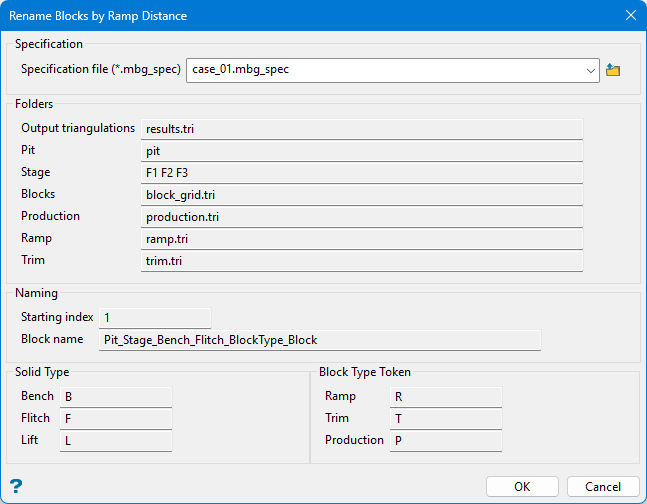

Note: Â The panel shows the relevant information for the process, and it is not editable. The data is taken from the Mining Solids Set Up and Mining Solids Create options.
Follow these steps:
-
Select a mbg specification file from the drop-down list, or click the Browse icon to use the Explorer to search for one.
-
Click OK to run.
