Export Easimine
Use the Export Easimine option to export triangulation information to an Easimine file.
Instructions
On the File menu, click Export to display the Export panel.

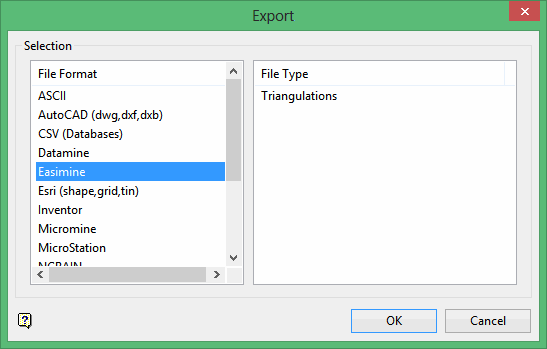

Click Easimine in the File Format column on the left.

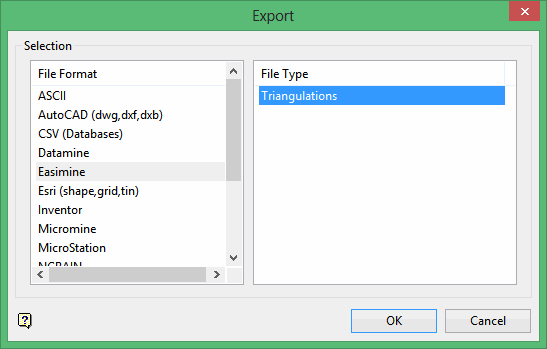

Select Triangulations from the File Type field on the right side of the panel.

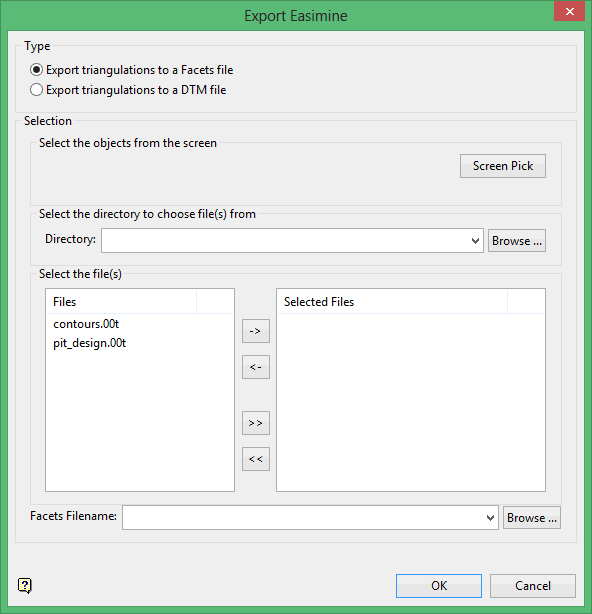

Click OK to display the Export Easimine panel.
Select which Easimine format you want to export the Vulcan triangulations to in the Type section.
- Select Export triangulations to a Facets file to export the triangulations to the Easimine Facets format. If you select this option, the data will be exported to a single Easimine file.
- Select Export triangulations to a DTM file to export the triangulations to the Easimine DTM format.
Select the triangulations you want to export by using any combination of the following options:
-
Screen Pick - Select triangulation(s) that are already displayed on the screen. Click on the triangulation(s) you want to export and then right-click to return to the panel. The triangulations you selected are listed in the Selected Files column in the Select the file(s) section.
-
Browse - Select the triangulation(s) to export by selecting them in the Select the file(s) section. All triangulation files in your working directory will be listed in the Files column. To select a different directory, click Browse in the Select the directory to choose file(s) from section.
-
From List - To select the triangulations to export using the Select the file(s) section of the panel, highlight the file name in the Files column and click the right arrow buttons to add them to the Selected Files column. If you click the single right arrow button ( -> ), only the files you have highlighted will be moved to the Selected Files column. If you click the double right-arrow button ( >> ), all files will be moved to the Selected Files column. To highlight multiple files that are adjacent in the list, hold down the Shift key while you click the file names. To highlight non-adjacent files in the list, hold down the Ctrl key while you click the file names.
Click OK.
If you are exporting the triangulations to a Facets file, the triangulations will be exported to the Facets file. If you are exporting to a DTM file, the DTM File panel displays and you must enter the parameters for the DTM file.
Select of enter the name of the DTM file in the DTM filename drop-down menu.
Click OK. The triangulations will be exported to the DTM file.
Result
The triangulation information is exported to the Easimine Facets or DTM file that you specified, and the file is placed in your working directory.
