GEODAT

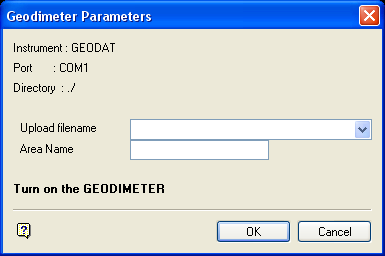

The Geodimeter Parameters panel displays.

Geodimeter Parameters panel

The instrument, port and directory are determined by the Set Up option.

Upload filename

Enter, or select from the drop-down list, the name of the upload file (<filename>.geodat_out).

Area Name

The upload file must be given an area name before it can be transferred to the instrument. The area name is the name that the uploaded data will be known as in the instrument.

Select OK.

The file is then uploaded to the instrument.
